STOCK Ready Access RAC-22 Air Curtain
Usually Ships In:
Includes:

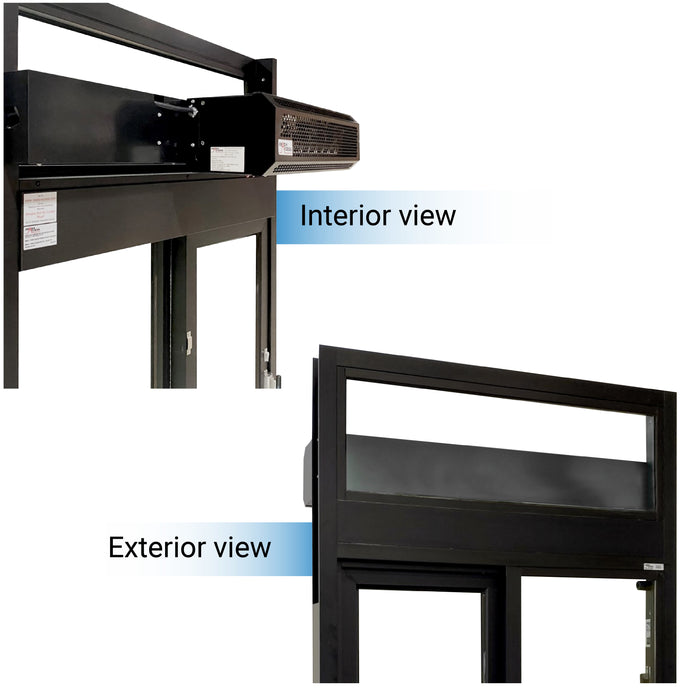

- Inside mount air curtain
- Mounting kit to conceal cords
- Relay switch to integrate fan with window operation

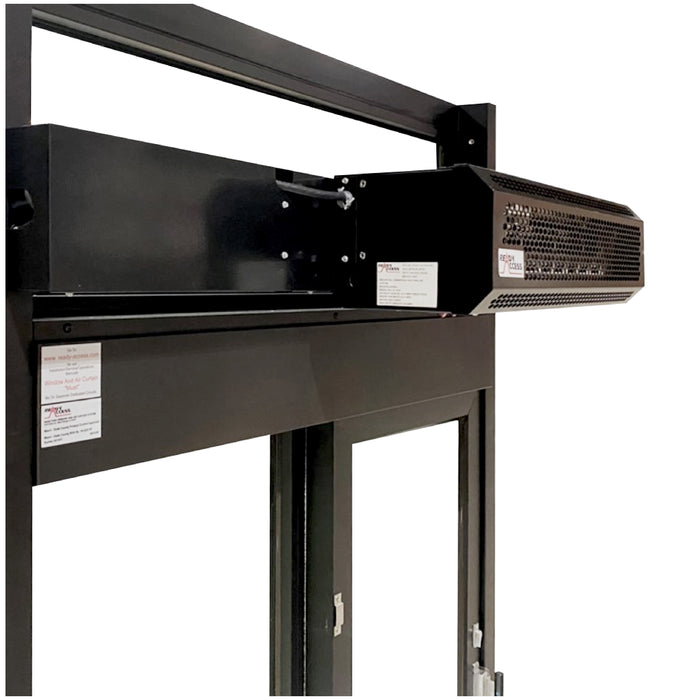

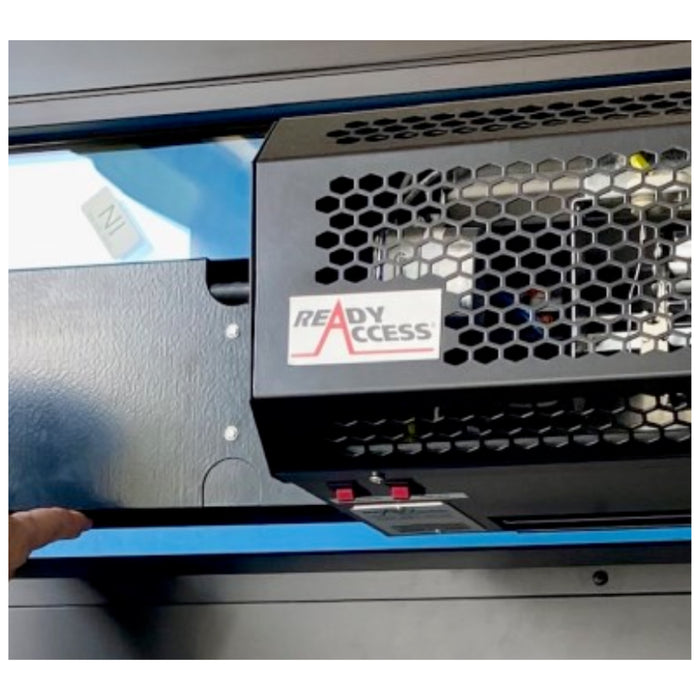

The Ready Access RAC-22 is an efficient, architecturally pleasing inside mount window air curtain solution designed specifically for Ready Access windows. It provides a barrier against insects, dust, and exhaust fumes to satisfy health department requirements for a fly fan. Also improves energy efficiency by reducing HVAC losses. The window air curtain is available with heat for staff comfort.
Manufactured and warrantied by Ready Access for complete service window system. Low profile design for headroom and aesthetics while still satisfying NSF guidelines for air flow at counter height.
Available in clear aluminum or black casing to match the window. Comes standard with mounting brackets.
Relay switch turns fan on when window opens and cycles off when it closes.
- Fully assembled and ready to install
- Black or Clear Aluminum frame
- Heated or Unheated
- Low profile 26.8”w x 9.1”d x 7.1”h without mounting brackets or Mounting-Switch Package
- 22.6”w nozzle width
- 120v single phase / 60 hz / 20 AMP dedicated circuit
ELECTRIC REQUIREMENTS:
RAC-E-22 HEATED
20 Amp Dedicated Circuit
120v 60 Hz Single Phase
Heater 1550 Watts (12.9 Amps) Motor 3 Amps
RAC-22 UNHEATED
20 Amp Dedicated Circuit
120v 60 Hz Single Phase
Motor 3 Amps
