Name: Wendy's (U.S.) | Drive Thru Slider Windows
Brand: Quikserv
SKU: CSE-QSR-WEN-SC-3030-1/4-C-R
Price: 1250.0 USD
Availability: InStock

Warranty

Covered by our 12-month Warranty

Give Us A Call

+1 (866) 286-4400

Industrial Quality

Designed for commercial use.

Overview
Tech Specs
Downloads

Overview

These drive thru, self closing windows are commonly installed in Wendy's (U.S.) quick service restaurants.

CONFIGURATIONS COMMON IN WENDY'S RESTAURANTS

36" (W) x 36" (H) | Manual Operation, Self Closing | 1/4" Tempered Glass | Quikserv 9044/9046
48" (W) x 36" (H) | Manual Operation, Self Closing | 1/4" Tempered Glass | Quikserv 9060/9062
48" (W) x 36" (H) | Manual Operation, Self Closing | Hurricane Impact Glass | Quikserv 9406/9408

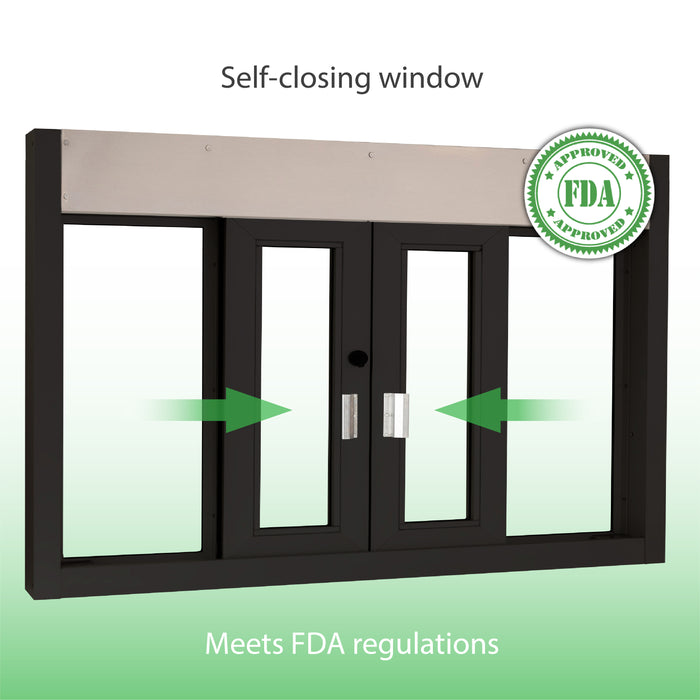

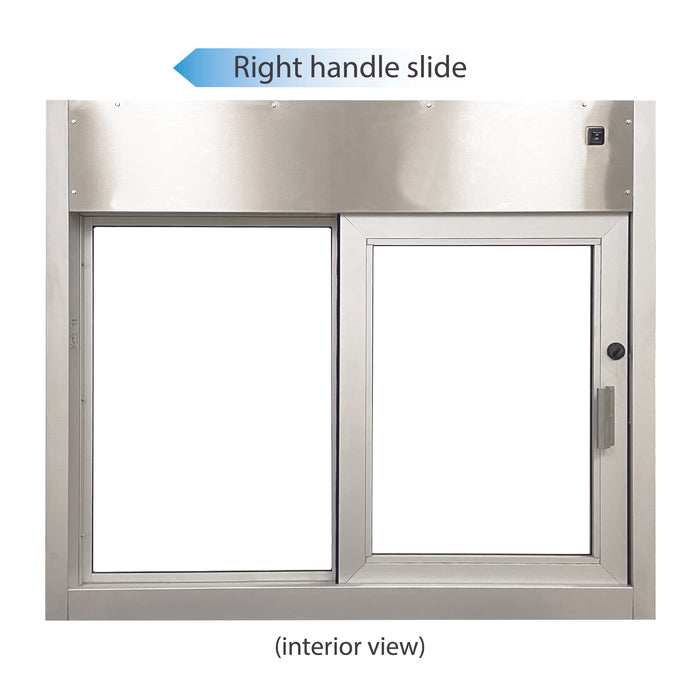

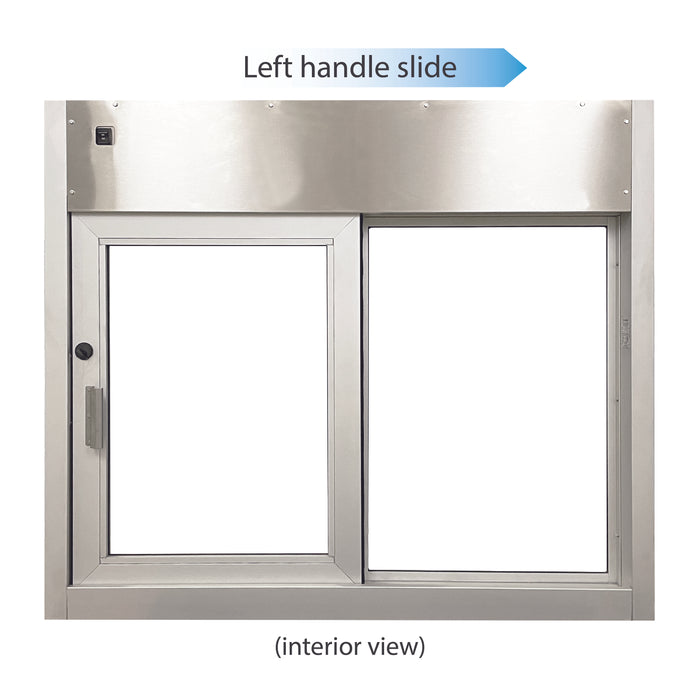

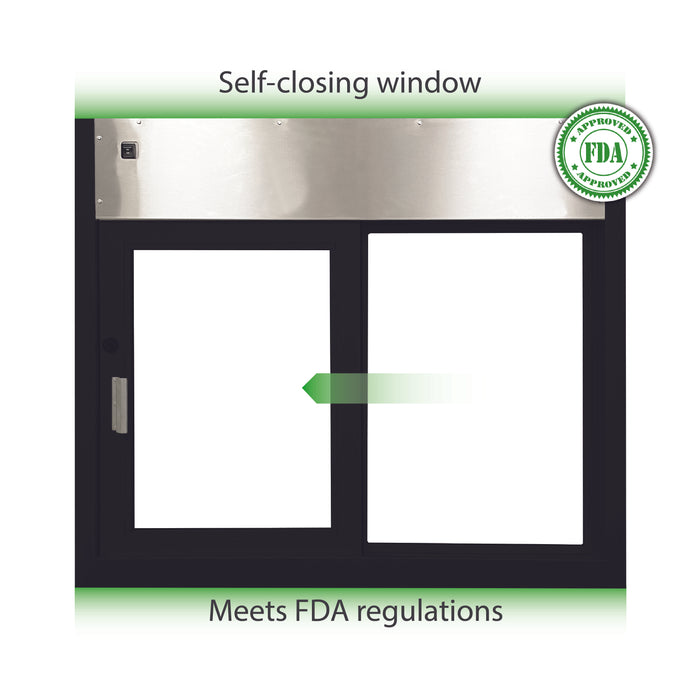

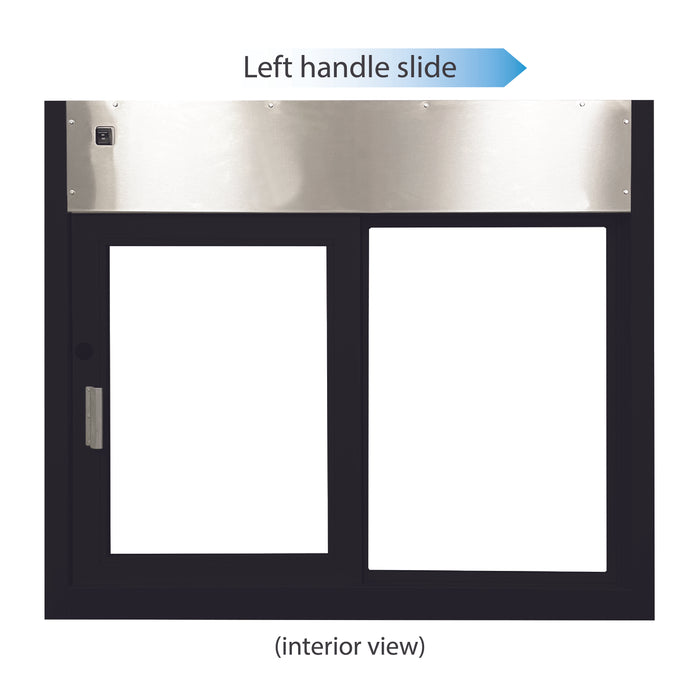

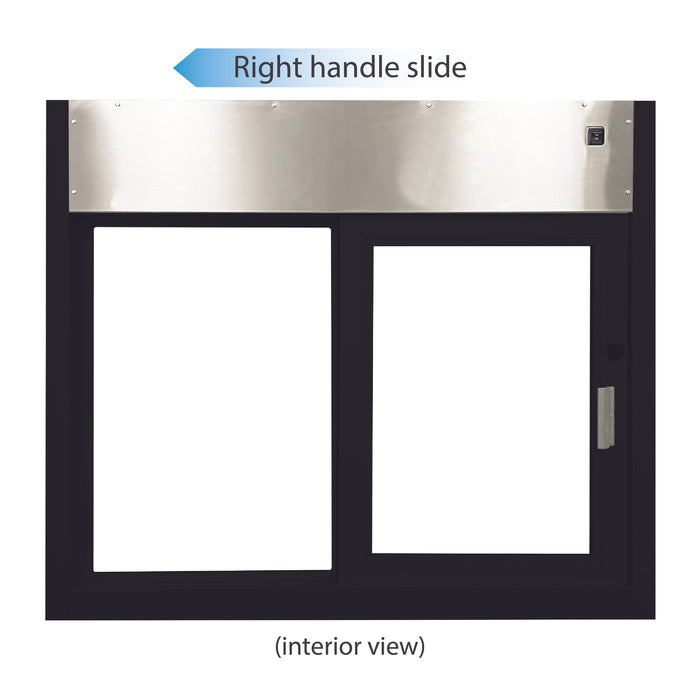

These self-closing transaction windows with horizontal sliders meet all health code requirements. These self-closing units are mounted flush to the exterior wall. By simply releasing the window after serving the customer, the door panel closes automatically. With an offset in the base, and gliding on a top-hung ball bearing system, these sliders are the smoothest windows on the market.

72" (W) x 41" (H) | 1/4" Tempered Glass | Quikserv 9518
72" (W) x 41" (H) | Hurricane Impact Glass | Quikserv 9660-BX / 9661-CX

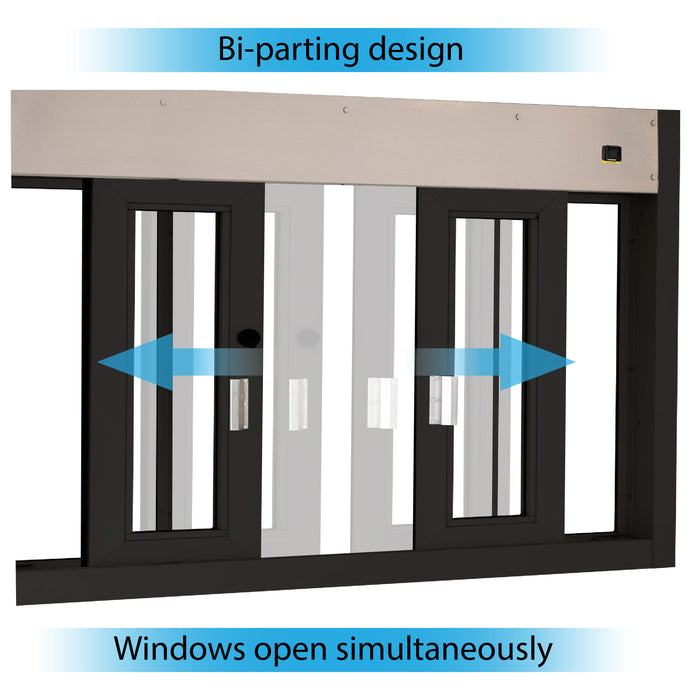

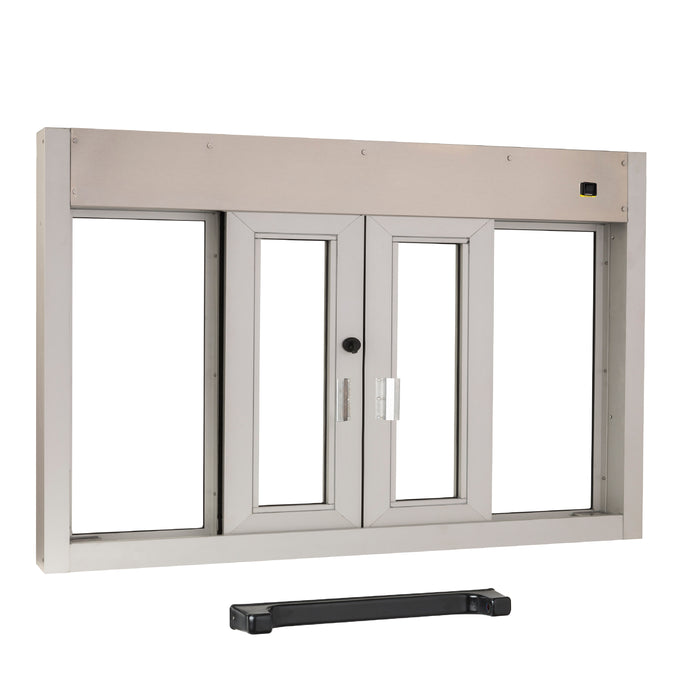

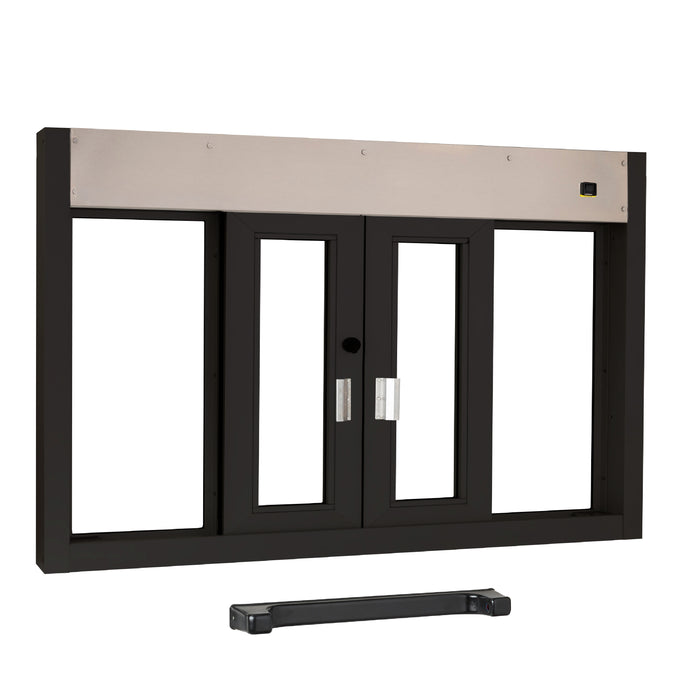

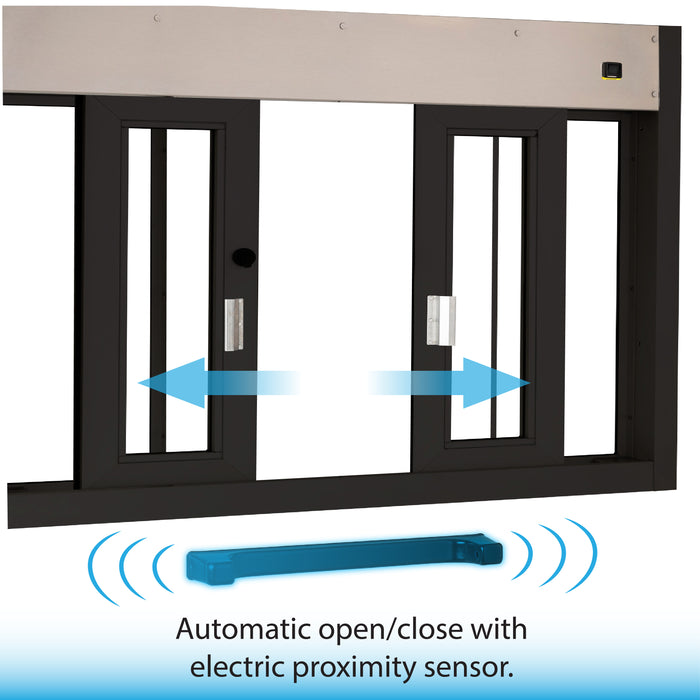

This 72” wide bi-parting automatic sliding transaction window has one of the largest service openings in the drive-thru arena. With a generous 29-1/2”(w) x 32”(h) opening, you can effectively operate with two workers in one window or pass large items such as dry cleaning, large pizza boxes, auto parts, etc. through the transaction window. All automatic windows come standard with the “hands-free” operation via a thru-beam sensor. However, we do offer these with the push button operation as well.

48" (W) x 41" (H) | Fully Automatic | 1/4" Tempered Glass | SS-4035E

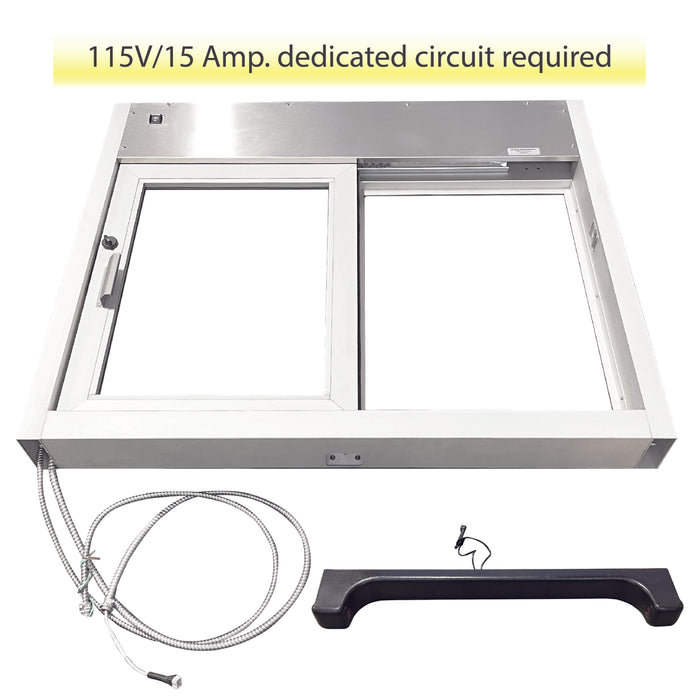

This automatic single sliding drive-thru window is the perfect solution for hands-free service in the drive-thru food industry. It features a presence sensor photoelectric eye bar that detects presence and automatically opens/closes the window.

This flush-mount, fully automatic, single slider glides smoothly on a top-hung slide rail system. The transaction window unit is either right or left handed, depending on your needs. An offset in the base prevents outside intrusion and repels water from entering into your establishment.

STANDARD FEATURES

Shipped fully-assembled and ready to install
Warranty backed with nationwide service centers
1/4” clear tempered safety glass

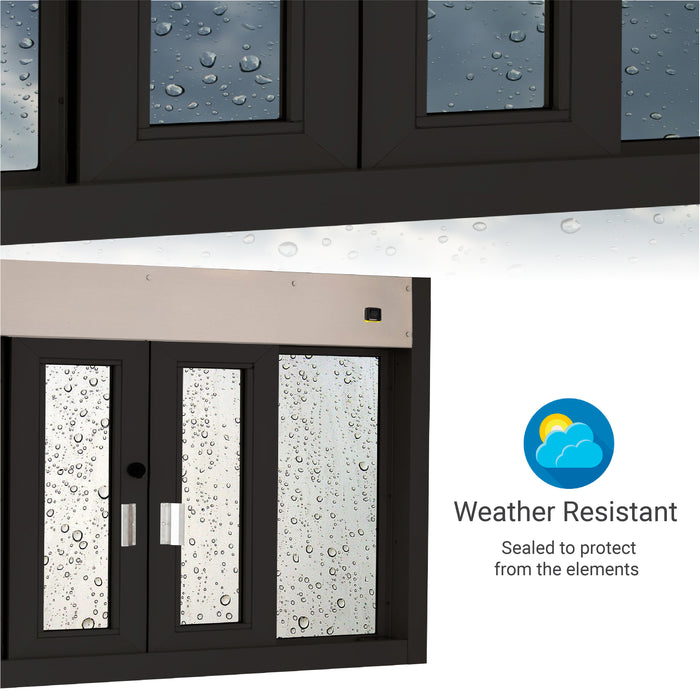

Weather resistant & sealed to protect from the elements
Dark bronze or clear anodized aluminum
Corrosion resistant material: anodized aluminum and #304-#3 finish stainless steel
Security locking systems
Maximum security hook-bolt locks
Automatically locks every time the door closes to prevent outside penetration

Tech Specs

Installation screw holes: 1/4"

Details

SC-3030

Window unit size: 36" (W) x 36" (H)
Service opening: 14-1/2" (W) x 29"(H)
Rough Opening: 36 3/8" (W) x 36 3/8" (H)

SC-4030

Window unit size: 48" (W) x 36" (H)
Service opening: 20-1/4" (W) x 29" (H)
Rough Opening: 48 3/8" (W) x 36 3/8" (H)

SS-4035E

Window Unit Size: 48" (W) x 41" (H)
Rough Opening: 48-3/8" (W) x 41-3/8" (H)
Service Opening: 20-1/4" x 29"
Frame depth: 4-1/2"

BP-7241E
Unit Size: 72″ (w) x 41″ (h)
Service Opening: 29-1/2" (w) x 32" (h)

Glazing Specifications

1/4" Tempered Glass

Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84

1/4 Tempered Glass Specification
