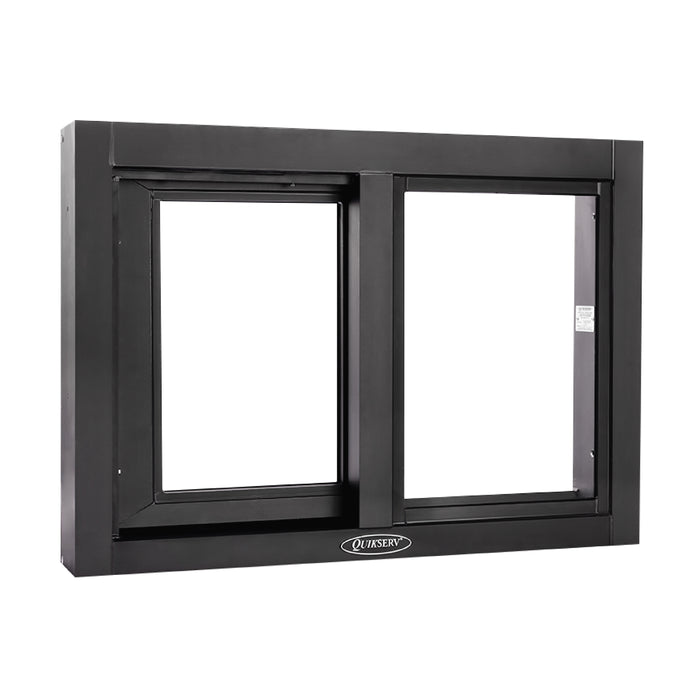

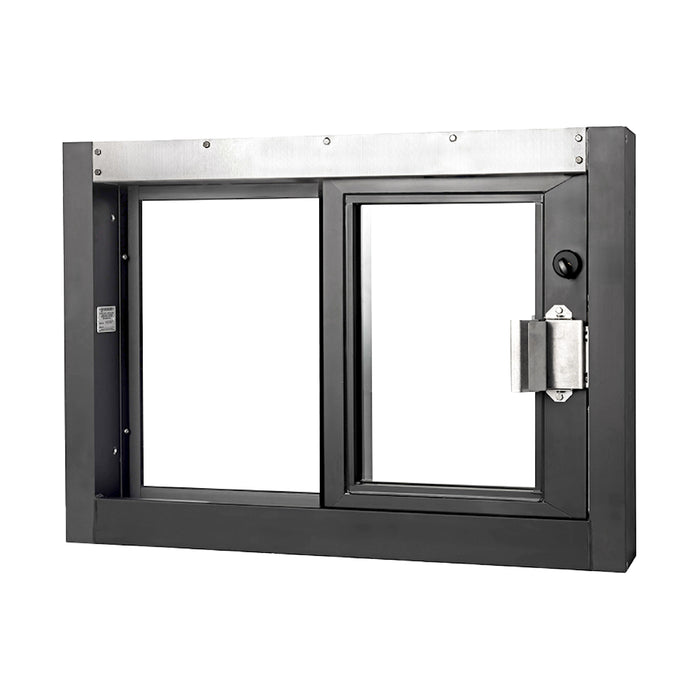

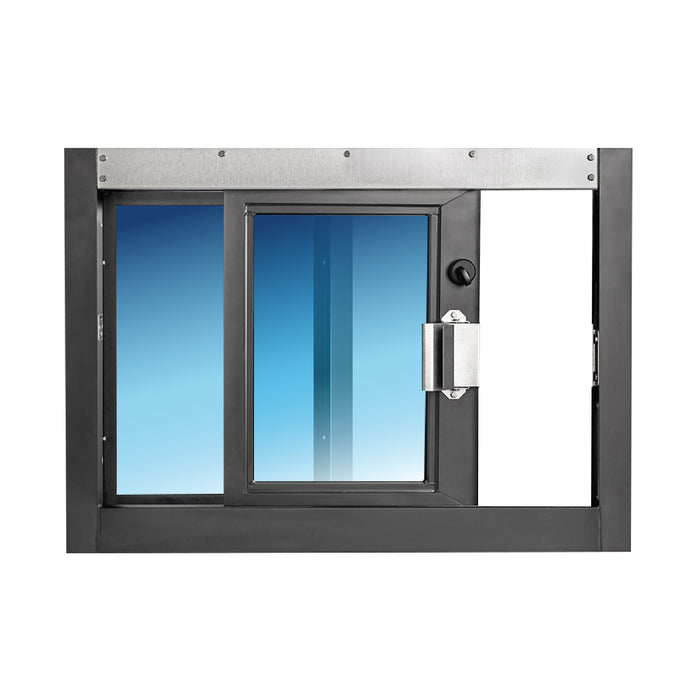

Quikserv Small Scale Side Sliding Transaction Window

Quikserv Small Scale Side Sliding Transaction Window

SKU CSE-QS-SC-3021-C-RH-NS
1,79500
$1,795.00 - $2,195.00
$1,795.00 - $2,195.00
1,79500
Bestseller
Get it Fast
Built-to-Order
Submittal

Usually ships in 2-3 days

Submittal required

Shop drawings will be provided for approval prior to fabrication

Order received. We review the order details and begin preparing your submittal package. After we receive your order, we send submittal drawings for review and approval prior to fabrication. This can take up to 1-2 weeks. Once submittals are approved, your order moves into fabrication. After fabrication is complete, your order ships and is delivered.
Order
Received Submittal
Approval Fabrication Delivery

Ships via LTL Freight

Ships via LTL Oversize Freight!

This product ships via LTL freight due to its size or weight. Someone must be available to receive the shipment, inspect for damages, and sign the delivery receipt. Please provide accurate delivery contact information when placing your order.

This product ships via LTL freight due to its size and weight. Please ensure that your delivery location is equipped with either a forklift or a loading dock to safely offload the shipment. If your site is not equipped for LTL delivery, additional delivery arrangements may be required and could result in extra charges.

Quikserv logo View all Quikserv Windows / Drawers

Get exactly what you need!

We'll deliver a custom quote tailored to your specifications.

Request a Custom Quote

Quote clipboard

Need a Custom Product?

Get a personalized quote just for you.

Request a Quote
Questions?
Questions?
Give us a call: (866) 286-4400
Custom Products
Custom Products
Designed to your exact specs
Expert Support
Expert Support
Our product specialists are ready to help
Warranty
Warranty
Covered by our 12-month warranty
MODELSC-3021CUSTOM
Overall Size30"(W) x 20-1/2"(H)
Download Cut Sheet		Max: " (W) x " (H)
Download Cut Sheet
Rough Opening30-3/8"(W) x 21-7/8"(H)
Service Opening11"(W) x 16-3/8"(H)Min: 14-1/2"(W)
Max: 20-1/4"(W)
Jamb Depth4-1/2"(D)
WeightNo Shelf: lbs
With Shelf: lbs
Glazing1/4" Tempered - Download Specification
1/4" Tempered
1" Insulated
Level 1 Bullet Resistant
Level 3 Bullet Resistant
Polycarbonate
Frame Material1/4" Tempered: Anodized aluminum and #304-#3 finish stainless steel
Bullet Resistant: Loaded aluminum frame and #304-#3 finish stainless steel
UL 752 RatingLevel 1 Bullet Resistant Protection - 9mm
Level 3 Bullet Resistant Protection - .44mag
Frame ColorClear Aluminum
Dark Bronze		Clear Aluminum
Dark Bronze
Powder Coated
EnvironmentInterior / Exterior application
InstallationDownload Installation Instructions
AssemblyShipped fully assembled, ready to installGlazing dropshipped separately for larger sizes
Warranty12 Month - Standard Warranty
ArchitectDownload 3-Part Spec
Overview

This Quikserv small scale walk-up window is the ideal solution for pedestrian customers and delivery drivers. The compact frame size is perfect for retrofit projects and easy transfer of on-the-go orders. These window models are also compliant with the California Retail Food Guide, providing a service opening that is less than the required 216 sq in without the use of an air curtain.



Quikserv’s line of walk-up windows are the ideal solutions designed for walkup
service ranging from pedestrian customers to delivery drivers. The small
frame size is perfect for retrofits and makes an ideal size to transfer orders
needed for customers on the go.
These window models are also compliant with the California Retail Food
Guide, providing a service opening that is less than the required 216 sq in
without the use of an air curtain. SC-3021: Unit Size: 30″W x 21-1/2″H

  • Dark bronze or clear anodized frame finish
  • Window opens RIGHT to LEFT or LEFT to RIGHT from interior

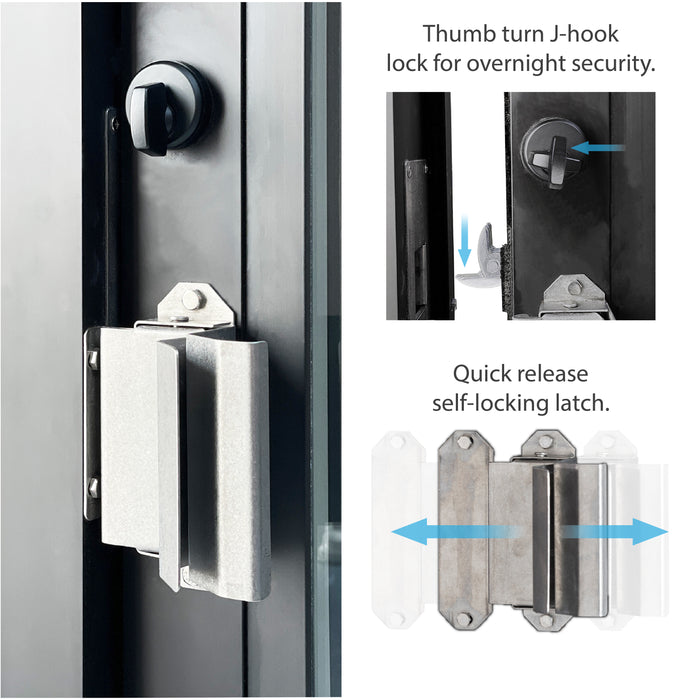

  • Adams Rite thumbturn locking device
  • 1/4” Clear tempered safety glass
  • Shipped fully-assembled and ready to install
  • Select windows models in stock and ready to ship
  • Backed by limited one year warranty
  • Heavy duty construction
  • SC-3021 Service Opening: 11”W x 16-3/8”H
