Texas Roadhouse | Drive Thru Slider Windows
Usually Ships Within:

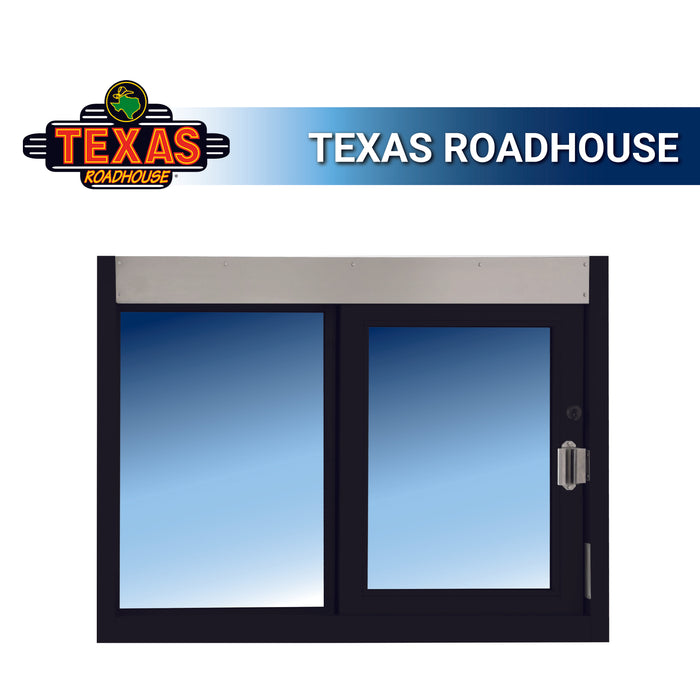

These drive thru self-closing windows are commonly installed in Texas Roadhouse quick service restaurants.
CONFIGURATIONS COMMON IN TEXAS ROADHOUSE RESTAURANTS
- 48" (W) x 36" (H) | Manual Operation, Self Closing | 1/4" Tempered Glass | Quikserv 9060/9062
- 48" (W) x 48" (H) | Manual Operation, Self Closing | 1" Insulated Glass| IFSC-4040 | Quikserv 9180
These self-closing transaction windows with horizontal sliders meet all health code requirements. These self-closing units are mounted flush to the exterior wall. By simply releasing the window after serving the customer, the door panel closes automatically. With an offset in the base, and gliding on a top-hung ball bearing system, these sliders are the smoothest windows on the market.
STANDARD FEATURES
- Shipped fully-assembled and ready to install
- Warranty backed with nationwide service centers
- 1/4” clear tempered safety glass
- Weather resistant & sealed to protect from the elements
- Dark bronze or clear anodized aluminum
- Corrosion resistant material: anodized aluminum and #304-#3 finish stainless steel
- Security locking systems
- Maximum security hook-bolt locks
- Automatically locks every time the door closes to prevent outside penetration
Tech Specs
Installation screw holes: 1/4"
Details
SC-4030
Window unit size: 48" (W) x 36" (H)
Service opening: 20-1/4" (W) x 29" (H)
Rough Opening: 48 3/8" (W) x 36 3/8" (H)
SC-4040
Window unit size: 48" (W) x 48" (H)
Service opening: 20-1/4”W x 41”(H)
Rough Opening: 48 3/8" (W) x 48 3/8" (H)
Glazing Specifications
1/4" Tempered Glass
Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84
1/4 Tempered Glass Specification
1" Insulated
Downloads
SC-4030
Three-Sided View
SC-4040
Three-Sided View
