Taco Bell | Drive Thru Slider Windows
Usually Ships Within:

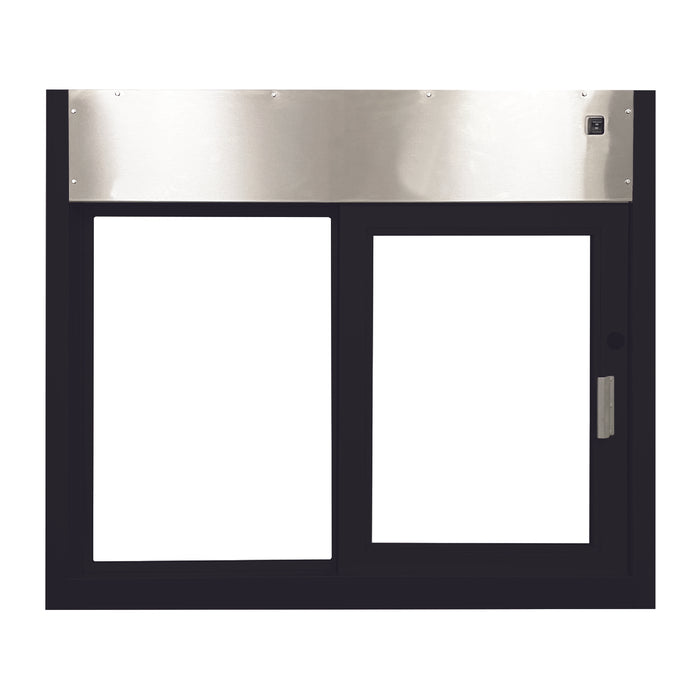

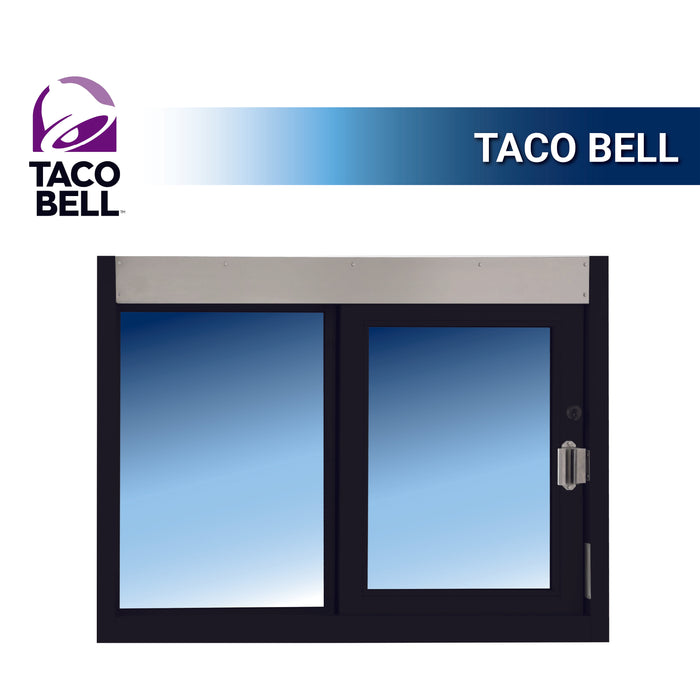

These drive thru self-closing windows are commonly installed in Taco Bell quick service restaurants.
CONFIGURATIONS COMMON IN TACO BELL RESTAURANTS

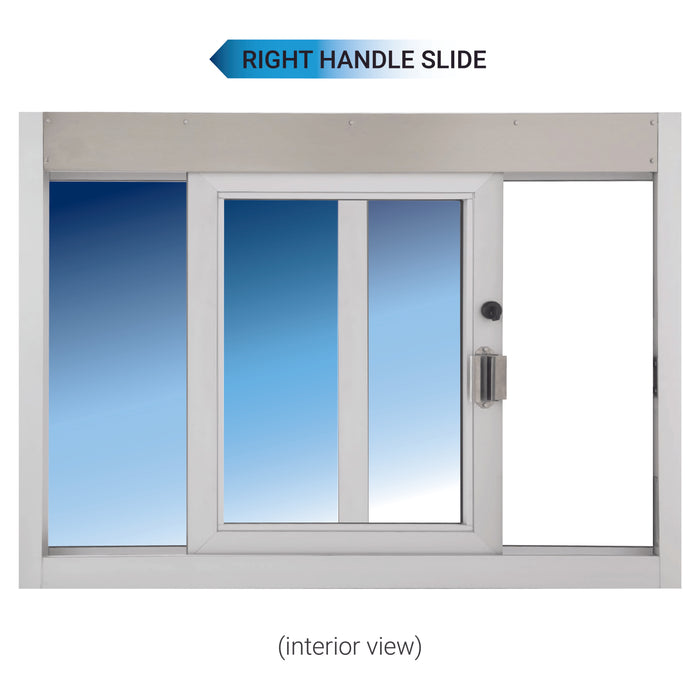

- 36" (W) x 36" (H) | Manual Operation, Self Closing | 1/4" Tempered Glass | Quikserv 9044/9046
- 48" (W) x 36" (H) | Manual Operation, Self Closing | 1/4" Tempered Glass | Quikserv 9060/9062

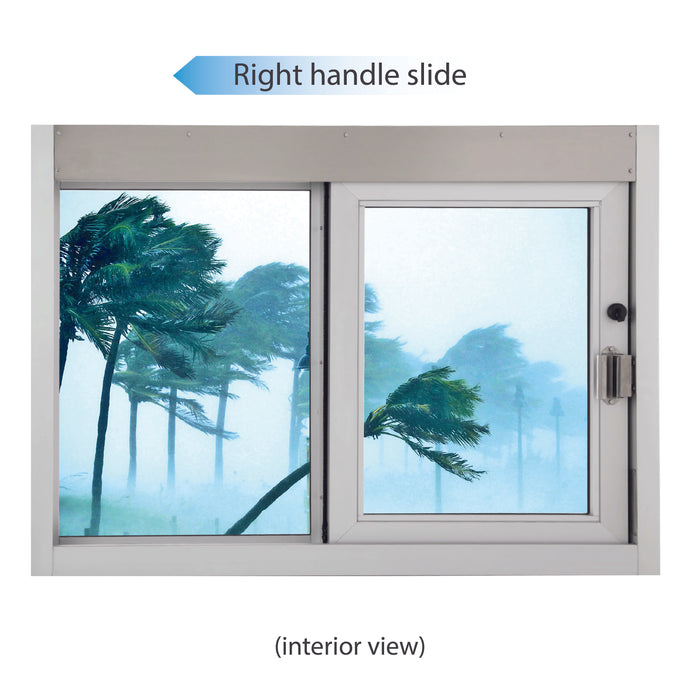

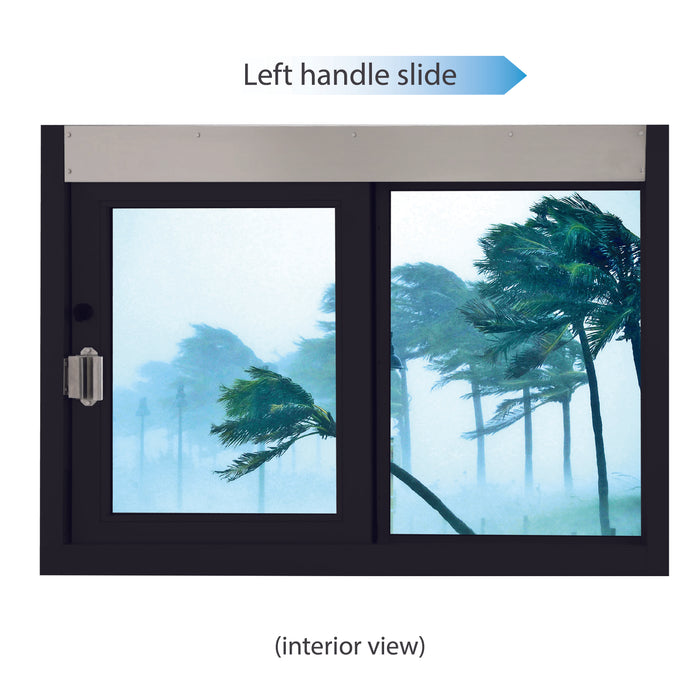

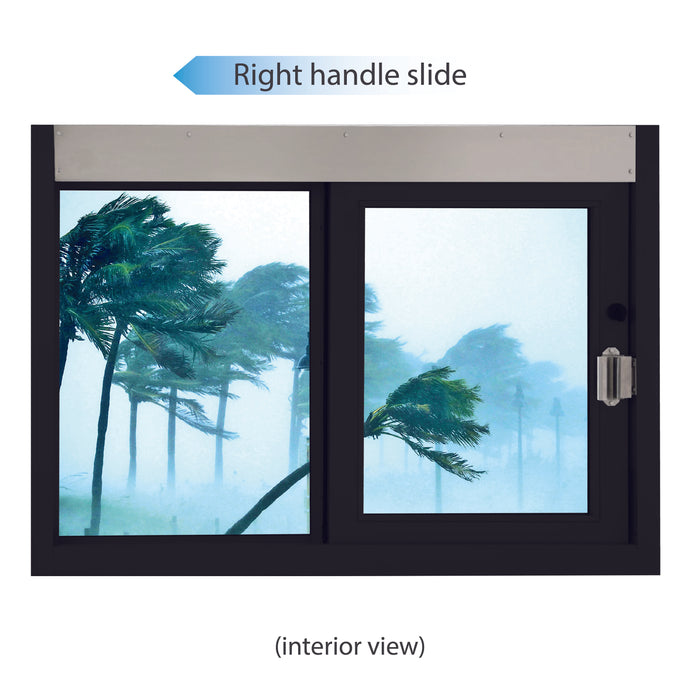

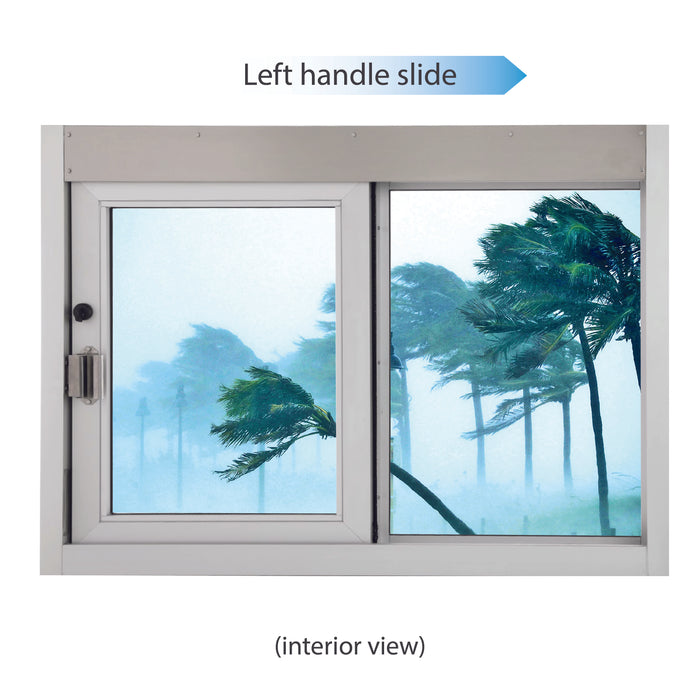

- 48" (W) x 36" (H) | Manual Operation, Self Closing | Hurricane Impact Glass | Quikserv 9406/9408

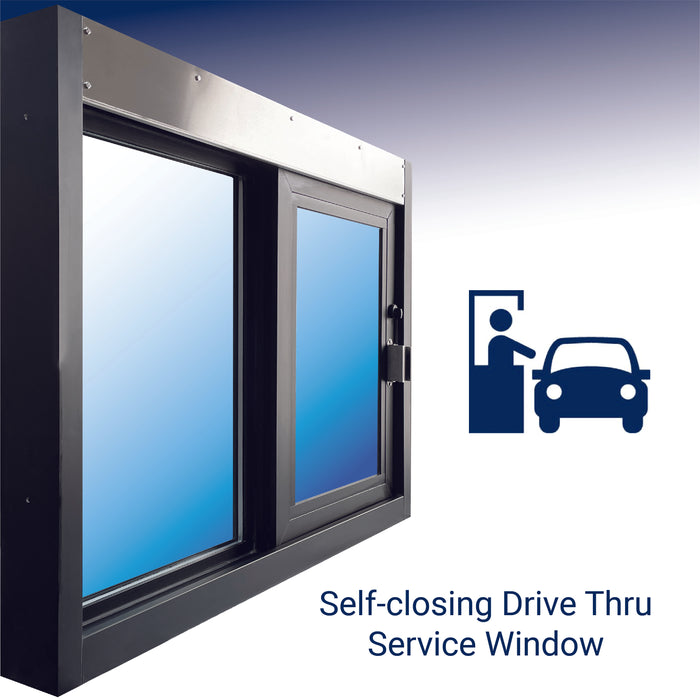

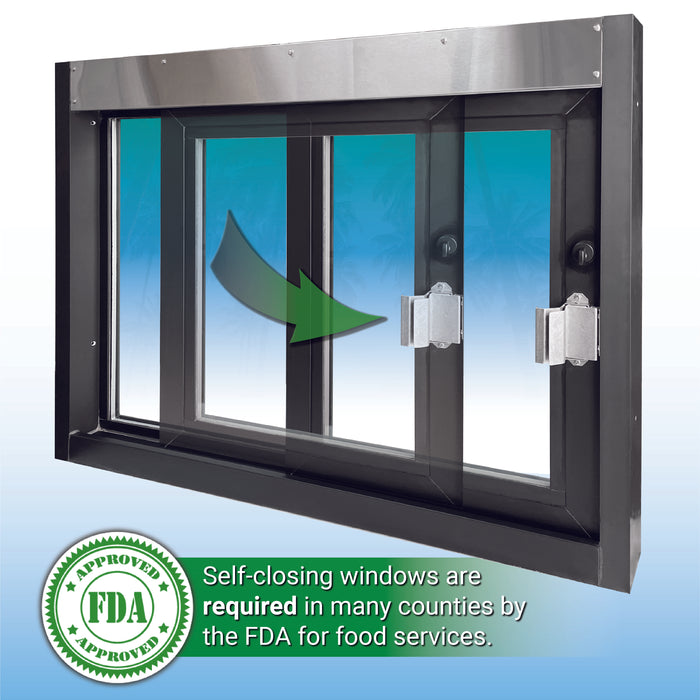

These self-closing transaction windows with horizontal sliders meet all health code requirements. These self-closing units are mounted flush to the exterior wall. By simply releasing the window after serving the customer, the door panel closes automatically. With an offset in the base, and gliding on a top-hung ball bearing system, these sliders are the smoothest windows on the market.

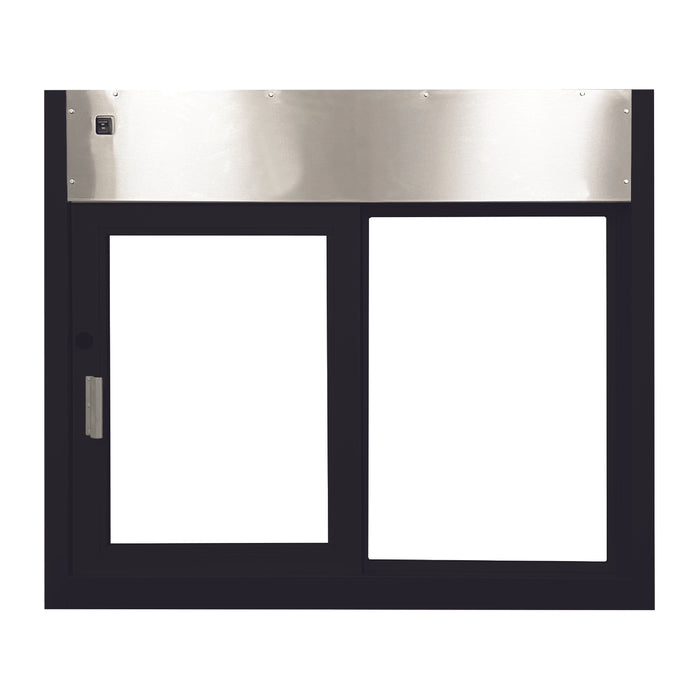

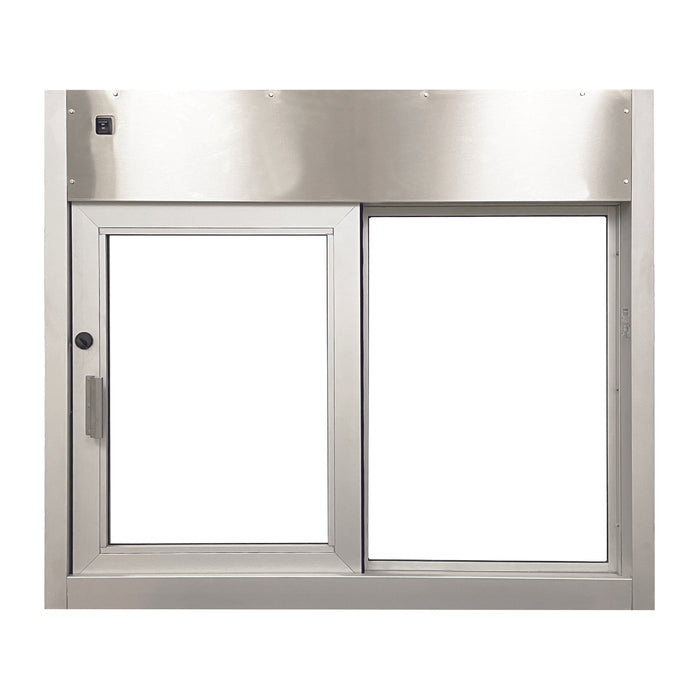

- 48" (W) x 41" (H) | Fully Automatic | 1/4" Tempered Glass | SS-4035E
This automatic single sliding drive-thru window is the perfect solution for hands-free service in the drive-thru food industry. It features a presence sensor photoelectric eye bar that detects presence and automatically opens/closes the window.

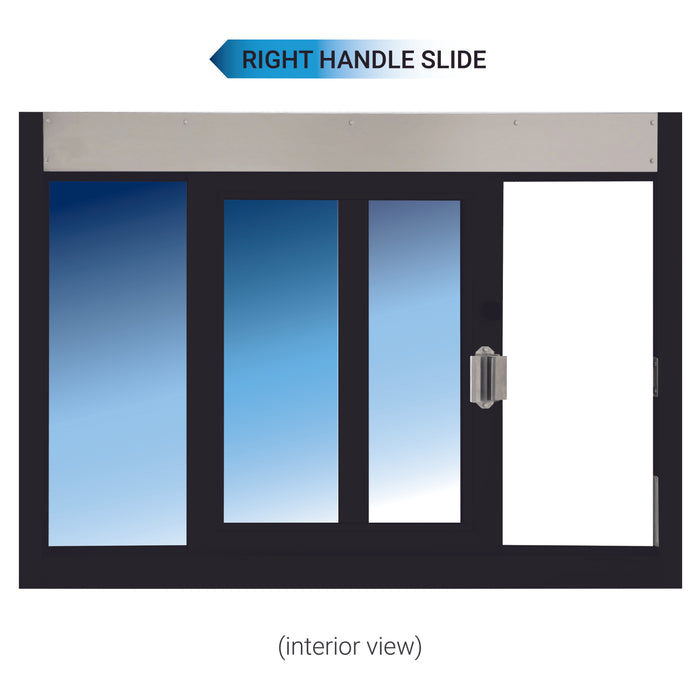

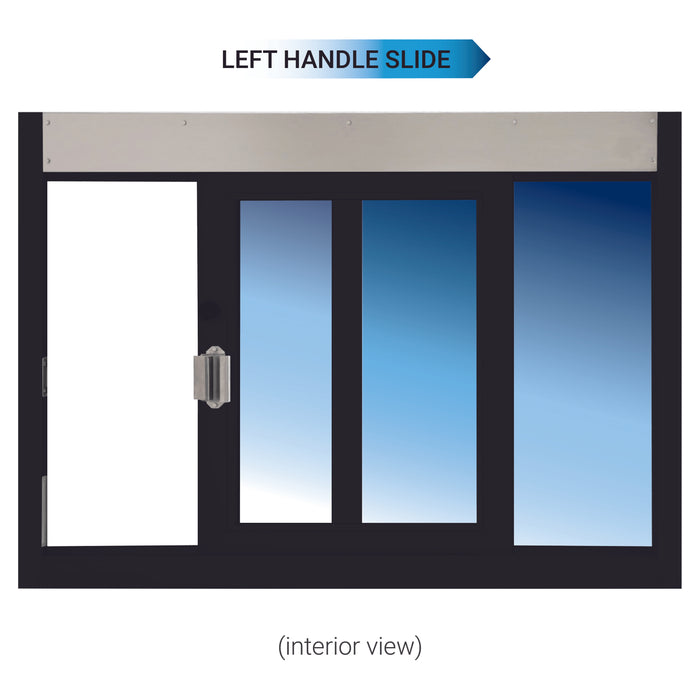

This flush-mount, fully automatic, single slider glides smoothly on a top-hung slide rail system. The transaction window unit is either right or left handed, depending on your needs. An offset in the base prevents outside intrusion and repels water from entering into your establishment.
STANDARD FEATURES
- Shipped fully-assembled and ready to install
- Warranty backed with nationwide service centers
- 1/4” clear tempered safety glass

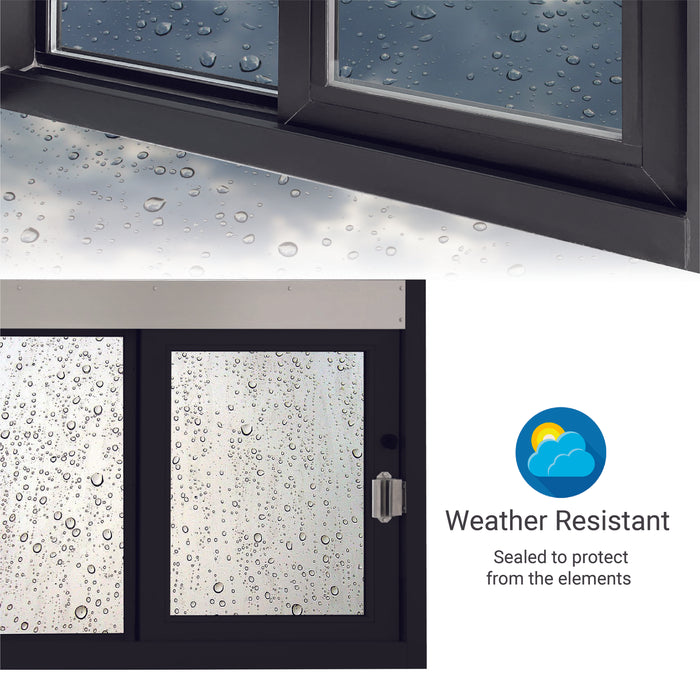

- Weather resistant & sealed to protect from the elements

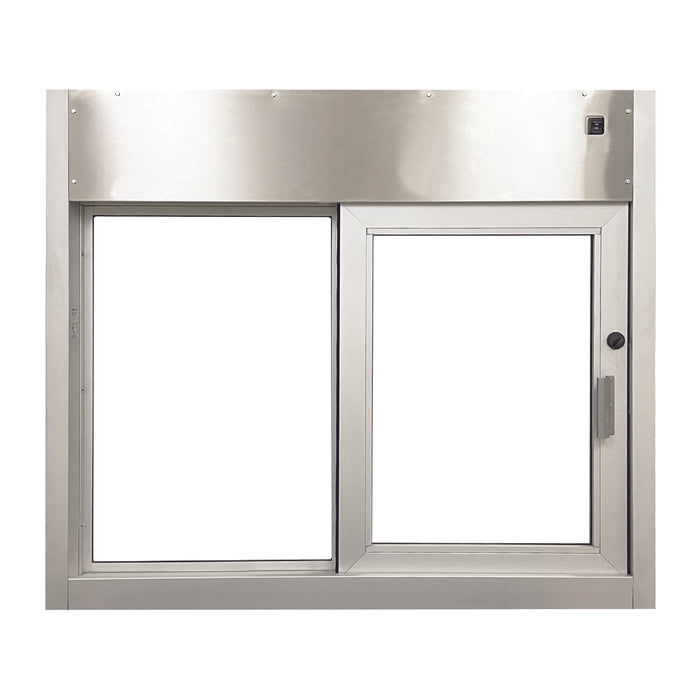

- Dark bronze or clear anodized aluminum
- Corrosion resistant material: anodized aluminum and #304-#3 finish stainless steel

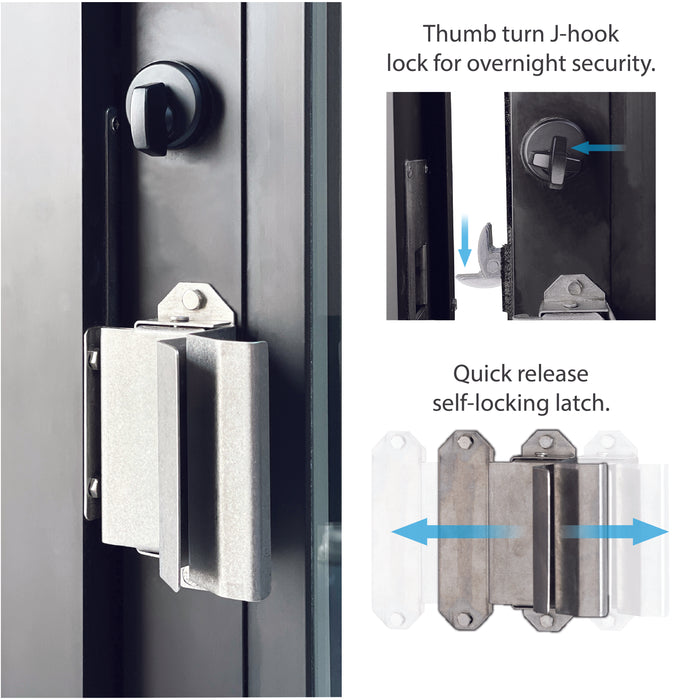

- Security locking systems
- Maximum security hook-bolt locks
- Automatically locks every time the door closes to prevent outside penetration
Tech Specs
Installation screw holes: 1/4"
Details
SC-3030
Window unit size: 36" (W) x 36" (H)
Service opening: 14-1/2" (W) x 29"(H)
Rough Opening: 36 3/8" (W) x 36 3/8" (H)
SC-4030
Window unit size: 48" (W) x 36" (H)
Service opening: 20-1/4" (W) x 29" (H)
Rough Opening: 48 3/8" (W) x 36 3/8" (H)
SS-4035E
Window Unit Size: 48" (W) x 41" (H)
Rough Opening: 48-3/8" (W) x 41-3/8" (H)
Service Opening: 20-1/4" x 29"
Frame depth: 4-1/2"
Glazing Specifications
1/4" Tempered Glass
Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84
1/4 Tempered Glass Specification
Downloads
SC-3030Three-Sided View
SC-4030
Three-Sided View
SS-4035E
Three-Sided Drawing
