Popeyes | Drive Thru Slider Windows
Usually Ships Within:
These drive thru self-closing windows are commonly installed in Popeyes quick service restaurants.
CONFIGURATIONS COMMON IN POPEYES RESTAURANTS
- 72" (W) x 41" (H) | 1/4" Tempered Glass | Quikserv 9518
- 72" (W) x 41" (H) | Impact Resistant Glass | Quikserv 9660 / 9661

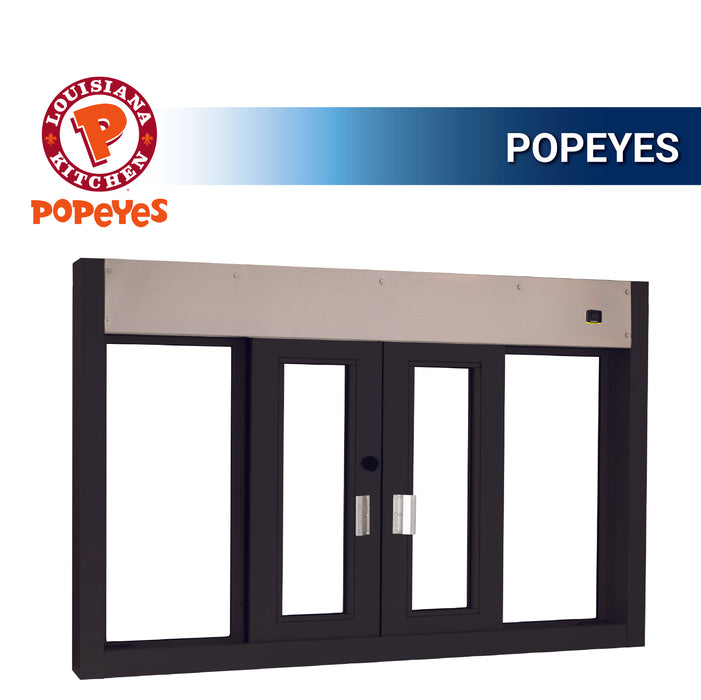

This 72” wide bi-parting automatic sliding transaction window has one of the largest service openings in the drive-thru arena. With a generous 29-1/2”(w) x 32”(h) opening, you can effectively operate with two workers in one window or pass large items such as dry cleaning, large pizza boxes, auto parts, etc. through the transaction window. All automatic windows come standard with the “hands-free” operation via a thru-beam sensor. However, we do offer these with the push button operation as well.
- 48" (W) x 36" (H) | Manual Operation, Self Closing | 1/4" Tempered Glass | Quikserv 9060

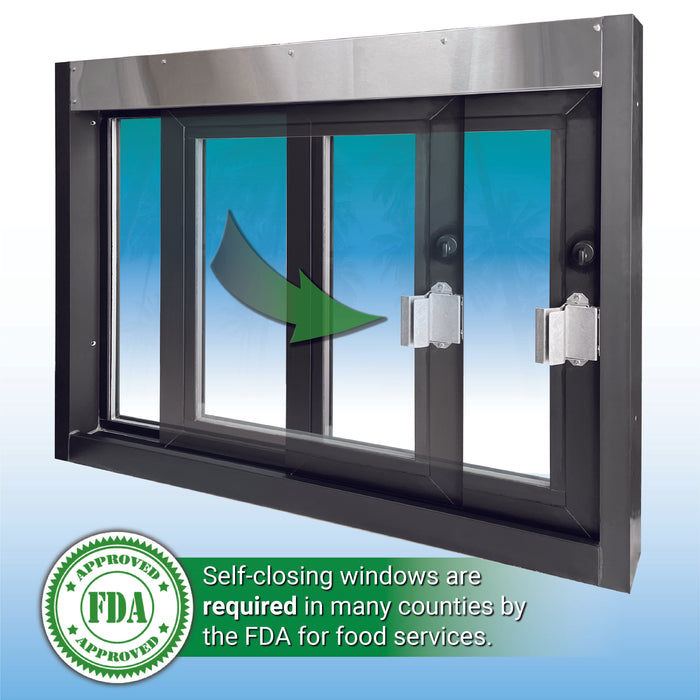

These self-closing transaction windows with horizontal sliders meet all health code requirements. These self-closing units are mounted flush to the exterior wall. By simply releasing the window after serving the customer, the door panel closes automatically. With an offset in the base, and gliding on a top-hung ball bearing system, these sliders are the smoothest windows on the market.
THRU-BEAM PHOTO-ELECTRIC EYE-BAR
Activated when the attendant stands between the emitter and receiver. Available on all electric sliders and is best used where there is limited space or tighter working conditions.
STANDARD FEATURES
- Shipped fully assembled and ready to install
- Warranty backed with Nationwide Service Centers
- 1/4” clear tempered safety glass

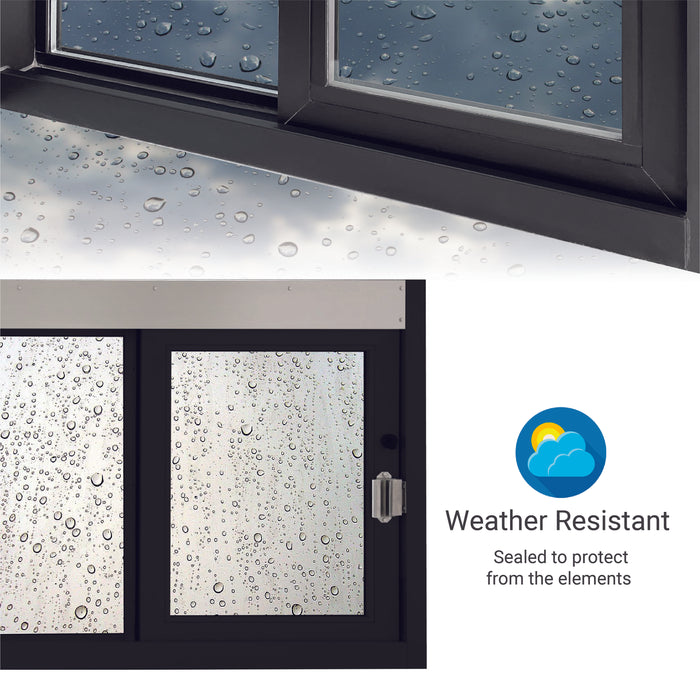

- Weather-resistant and sealed to protect from the elements
- Dark bronze or clear anodized aluminum
- Corrosion-resistant material: Anodized aluminum and #304-#3 finish stainless steel
- Security locking systems
- Easy manual operation upon power failure

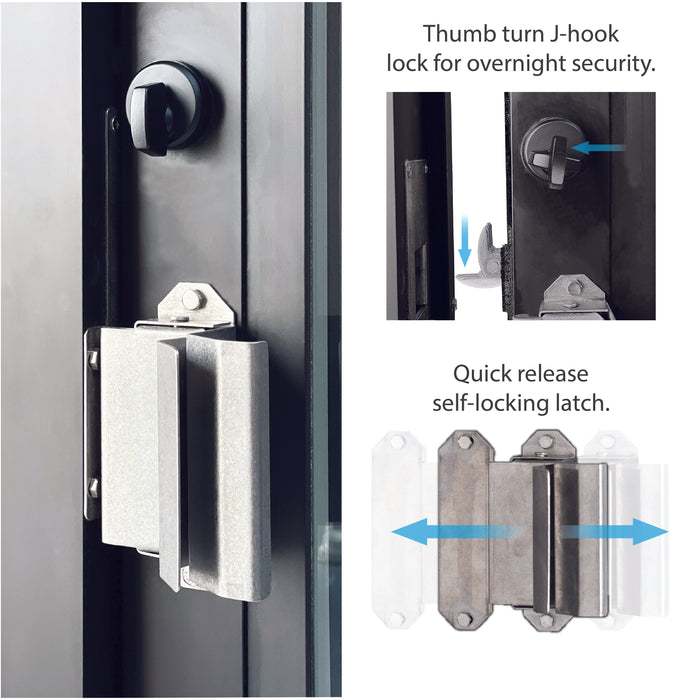

- Maximum security hook-bolt locks
- ETL listed
Tech Specs
Installation screw holes: 1/4"
Details
BP-7241E
Window Size: 72″ (w) x 41″ (h)
Service Opening: 29-1/2" (w) x 32" (h)
SC-4030
Window unit size: 48" (W) x 36" (H)
Service opening: 20-1/4" (W) x 29" (H)
Rough Opening: 48 3/8" (W) x 36 3/8" (H)
Glazing Specifications
1/4" Tempered Glass
Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84
1/4 Tempered Glass Specification
Downloads
Installation Instructions
BP-7241E
Three-sided Drawing
SC-4030
Three-Sided View
