Panera | Drive Thru Slider Windows

SKU CSE-QSR-PA-FM-42E-C
Original price $4,150.00 - Original price $4,150.00
Original price
$4,150.00
$4,150.00 - $4,150.00
Current price $4,150.00

Usually Ships Within:

Configuration: 42" (W) x 39-7/8" (H) Fully Automatic Bi-Parting
Color: Standard Clear
Slide Direction: Fully Automatic Bi-Parting
CUSTOM QUOTE

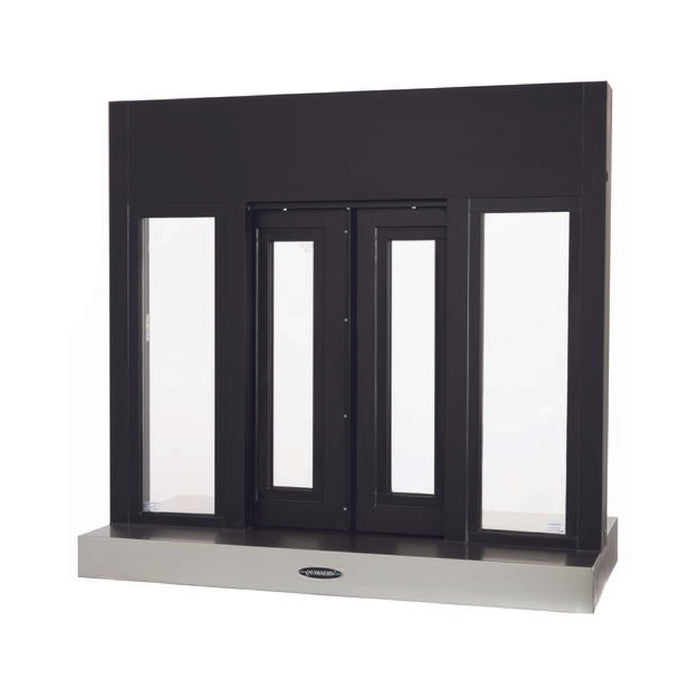

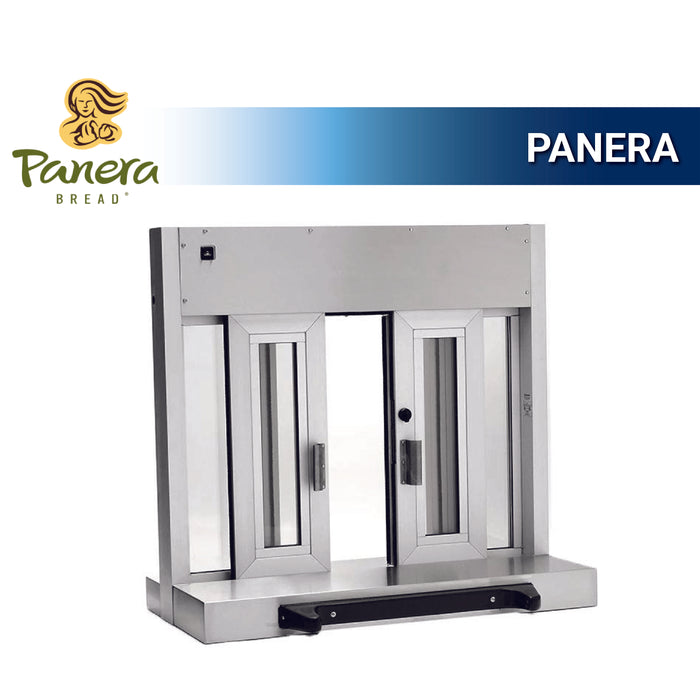

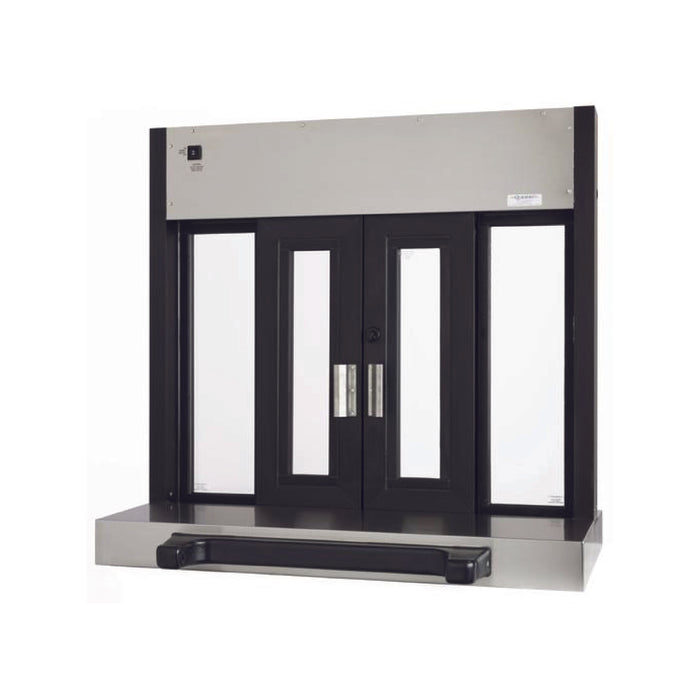

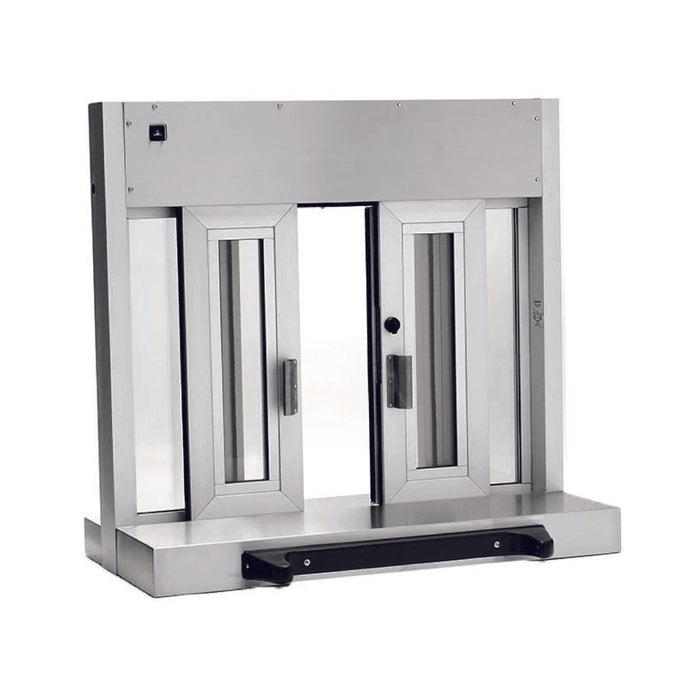

These drive thru self-closing windows are commonly installed in Panera quick service restaurants.

This flush-mount bi-parting slider operates with two bi-parting top-hung doors generating a faster speed of service. An overall base depth of 21” provides a stainless steel counter that both the attendant and the customer can use.

Thru-Beam Photo Electric Bar

Activated when the attendant stands between the emitter and receiver. Available on all electric sliders and is best used where there is limited space or tighter working conditions.

CONFIGURATIONS COMMON IN PANERA RESTAURANTS

    • 42" (W) x 39-7/8" (H) Fully Automatic Bi-Parting

    STANDARD FEATURES

    • Shipped fully assembled and ready to install
    • Warranty backed with Nationwide Service Centers
    • 1/4” clear tempered safety glass
    • Weather-resistant and sealed to protect from the elements
    • Dark bronze or clear anodized aluminum
    • Corrosion-resistant material: anodized aluminum and #304-#3 finish stainless steel
    • Security locking systems
    • Maximum security hook-bolt locks
    • Automatically locks every time the door closes to prevent outside penetration
    Tech Specs

    Installation screw holes: 1/4"

    Details

    FM-42E

    Window unit size: 42" (W) x 39-7/8" (H)
    Service opening: 15-1/2" (W) x 27" (H)
    Rough Opening: 42-3/8" (W) x 40-1/4" (H)

    Glazing Specifications

    1/4" Tempered Glass

    Thickness: .25"
    Weight (lbs/sq ft.): 2.87
    Transmittance: visible 89 / solar 81
    Reflectance: visible out 8 / visible in 8 / solar out 8
    U-value: winter night 1.03 / summer day 0.93
    SHGC: 0.84

    1/4 Tempered Glass Specification

    Downloads

    Installation Instructions

    FM-42E
    Three-Sided View

    Warranty

    Covered by our 12-month Warranty

    Give Us A Call

    +1 (866) 286-4400

    Industrial Quality

    Designed for commercial use.


    These drive thru self-closing windows are commonly installed in Panera quick service restaurants.

    This flush-mount bi-parting slider operates with two bi-parting top-hung doors generating a faster speed of service. An overall base depth of 21” provides a stainless steel counter that both the attendant and the customer can use.

    Thru-Beam Photo Electric Bar

    Activated when the attendant stands between the emitter and receiver. Available on all electric sliders and is best used where there is limited space or tighter working conditions.

    CONFIGURATIONS COMMON IN PANERA RESTAURANTS

      • 42" (W) x 39-7/8" (H) Fully Automatic Bi-Parting

      STANDARD FEATURES

      • Shipped fully assembled and ready to install
      • Warranty backed with Nationwide Service Centers
      • 1/4” clear tempered safety glass
      • Weather-resistant and sealed to protect from the elements
      • Dark bronze or clear anodized aluminum
      • Corrosion-resistant material: anodized aluminum and #304-#3 finish stainless steel
      • Security locking systems
      • Maximum security hook-bolt locks
      • Automatically locks every time the door closes to prevent outside penetration

      Installation screw holes: 1/4"

      Details

      FM-42E

      Window unit size: 42" (W) x 39-7/8" (H)
      Service opening: 15-1/2" (W) x 27" (H)
      Rough Opening: 42-3/8" (W) x 40-1/4" (H)

      Glazing Specifications

      1/4" Tempered Glass

      Thickness: .25"
      Weight (lbs/sq ft.): 2.87
      Transmittance: visible 89 / solar 81
      Reflectance: visible out 8 / visible in 8 / solar out 8
      U-value: winter night 1.03 / summer day 0.93
      SHGC: 0.84

      1/4 Tempered Glass Specification
