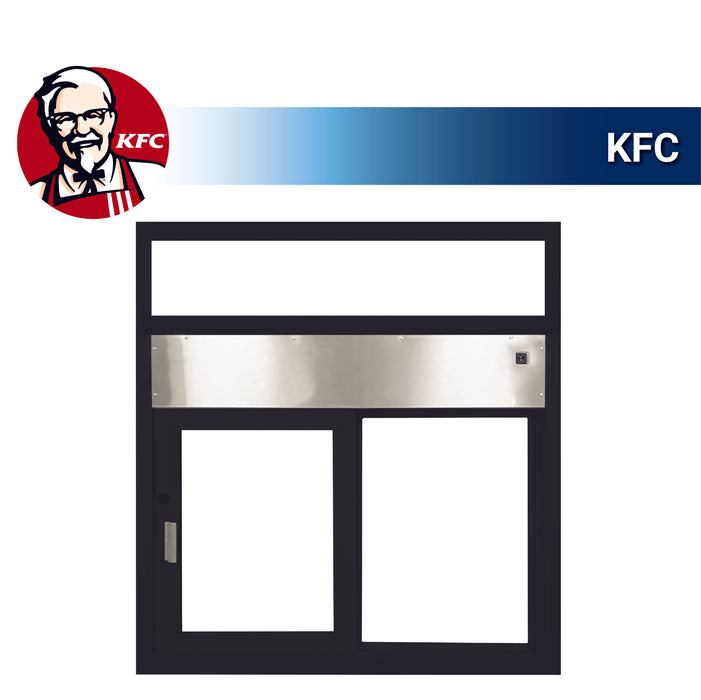

KFC | Drive Thru Slider Windows

These drive thru, self closing windows are commonly installed in KFC quick service restaurants.

CONFIGURATIONS COMMON IN KFC RESTAURANTS

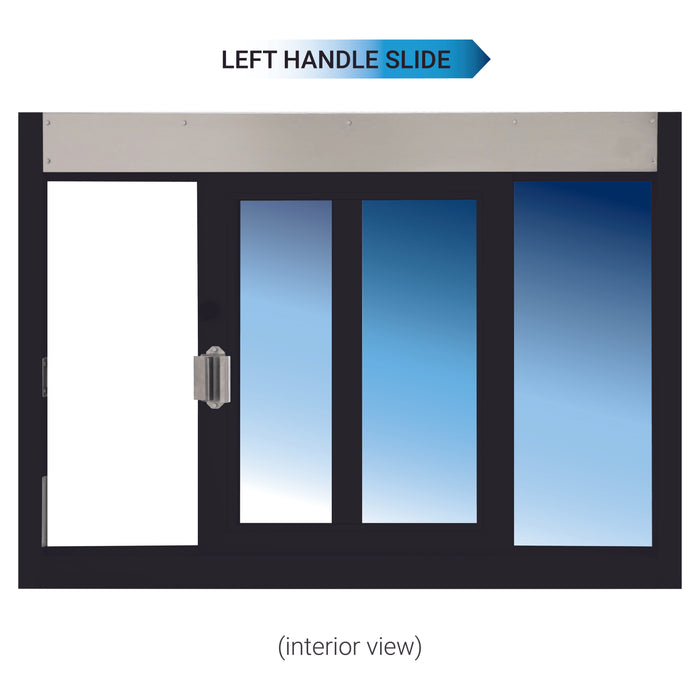

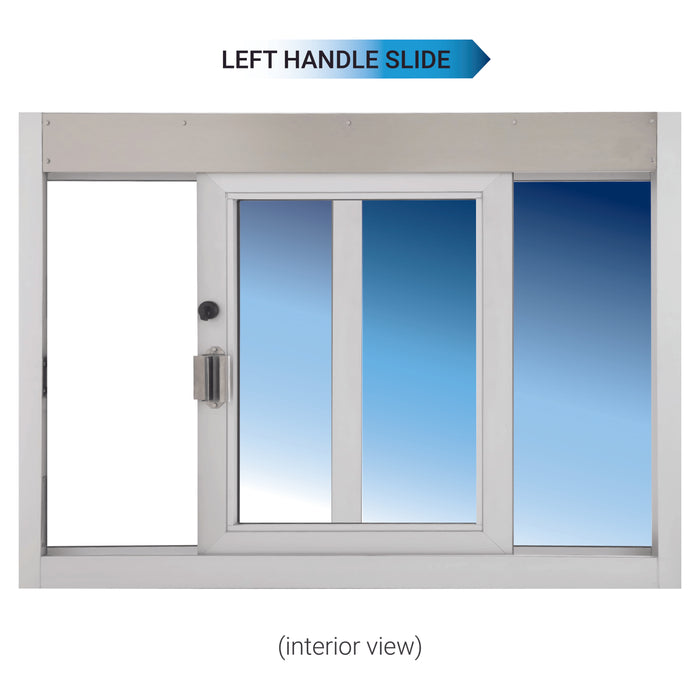

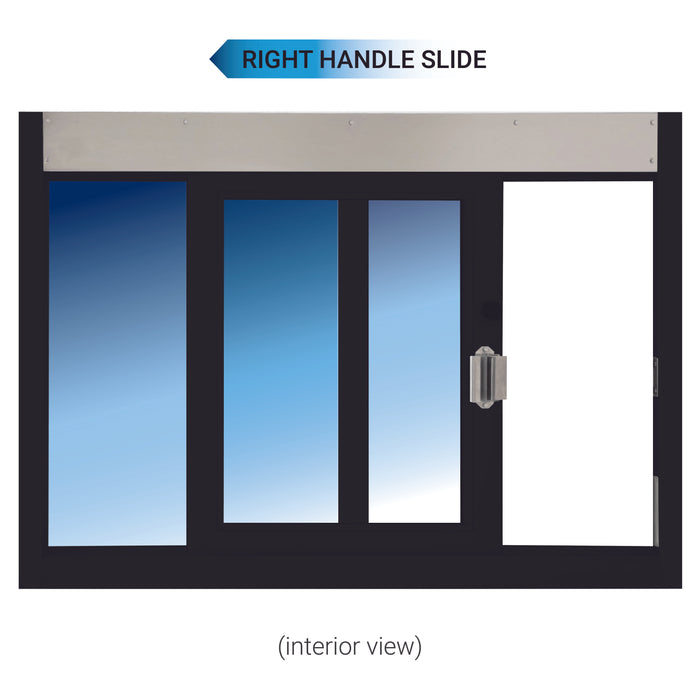

• 36" (W) x 36" (H) | Manual Operation, Self Closing | 1/4" Tempered Glass | Quikserv 9044/9046
• 48" (W) x 36" (H) | Manual Operation, Self Closing | 1/4" Tempered Glass | Quikserv 9060/9062
• 48" (W) x 48" (H) | Manual Operation, Self Closing | 1" Insulated Glass| IFSC-4040

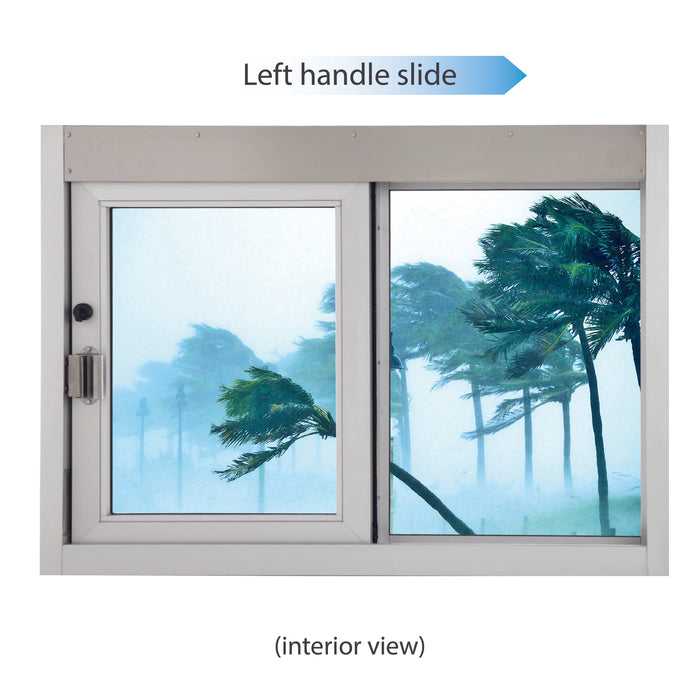

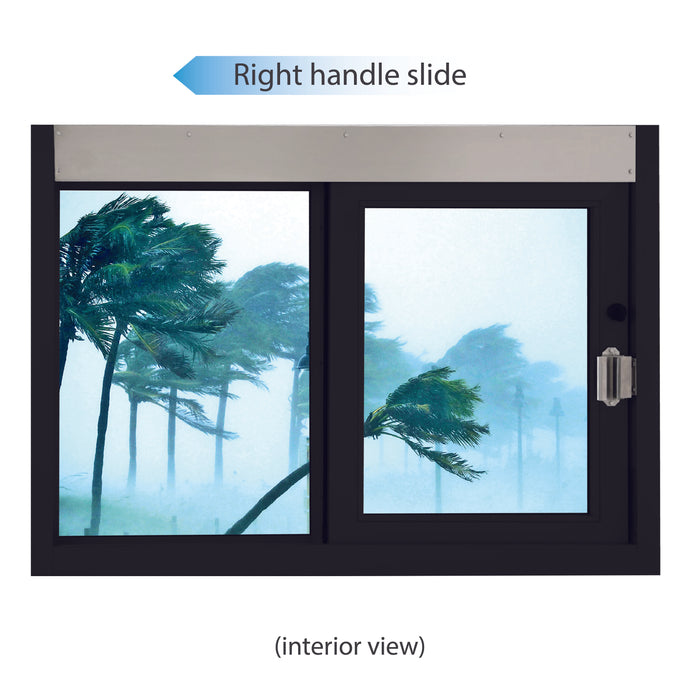

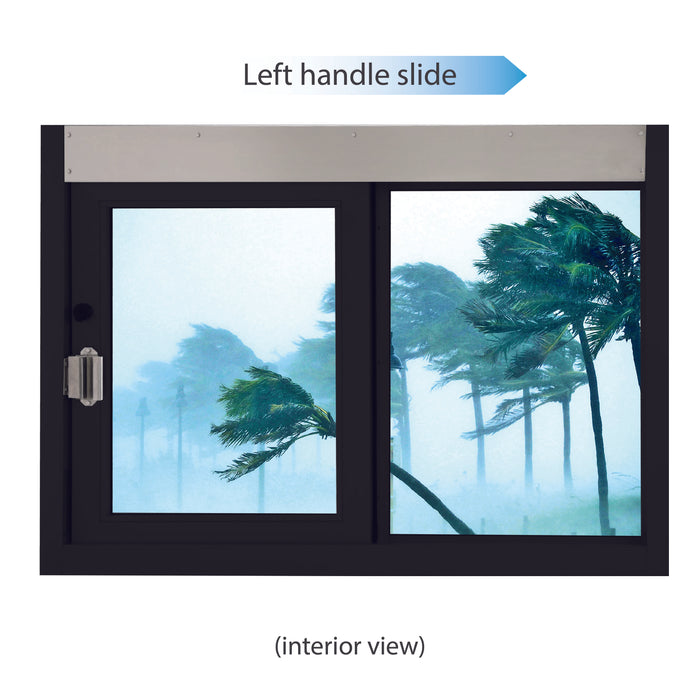

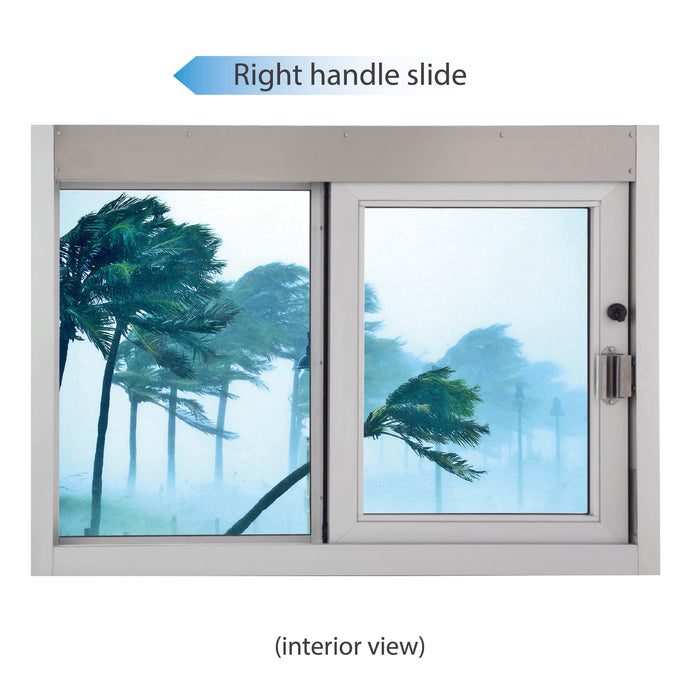

• 36" (W) x 36" (H) | Manual Operation, Self Closing | Hurricane Impact Glass | Quikserv 9414/9416
• 48" (W) x 36" (H) | Manual Operation, Self Closing | Hurricane Impact Glass | Quikserv 9406/9408

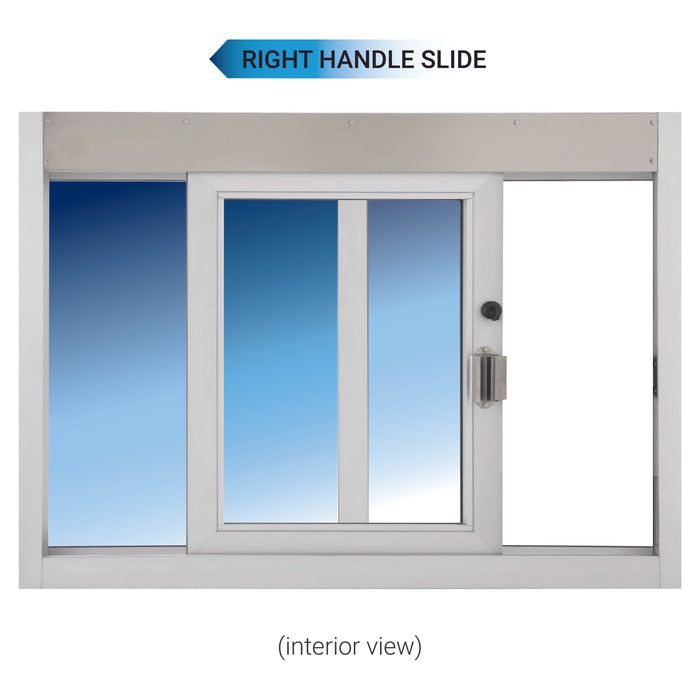

These self-closing transaction windows with horizontal sliders meet all health code requirements. These self-closing units are mounted flush to the exterior wall. By simply releasing the window after serving the customer, the door panel closes automatically. With an offset in the base, and gliding on a top-hung ball bearing system, these sliders are the smoothest windows on the market.

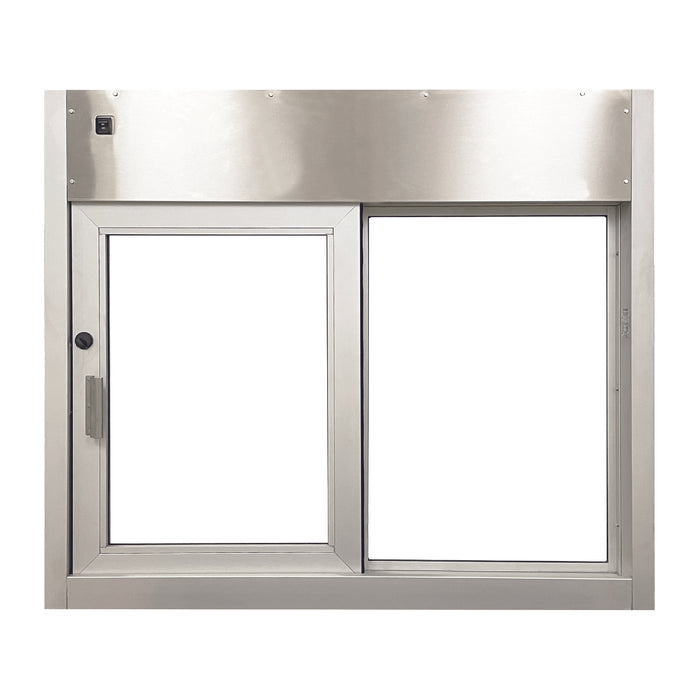

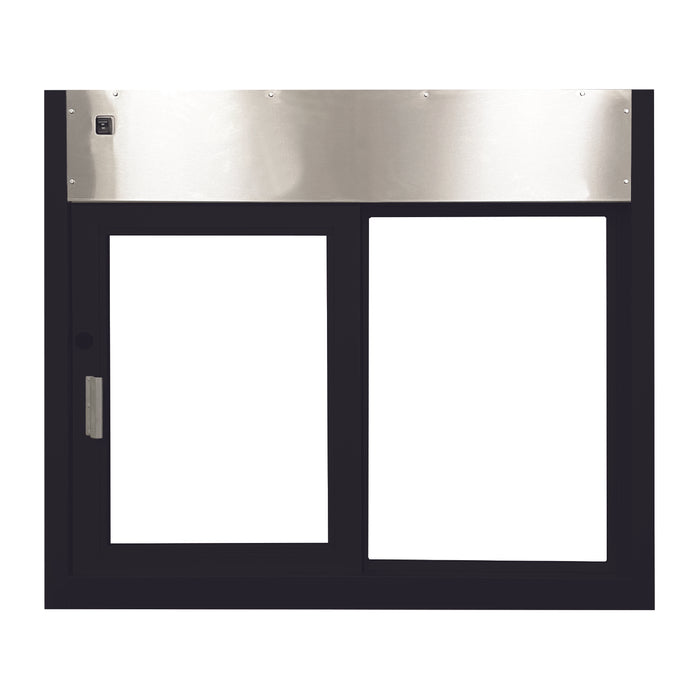

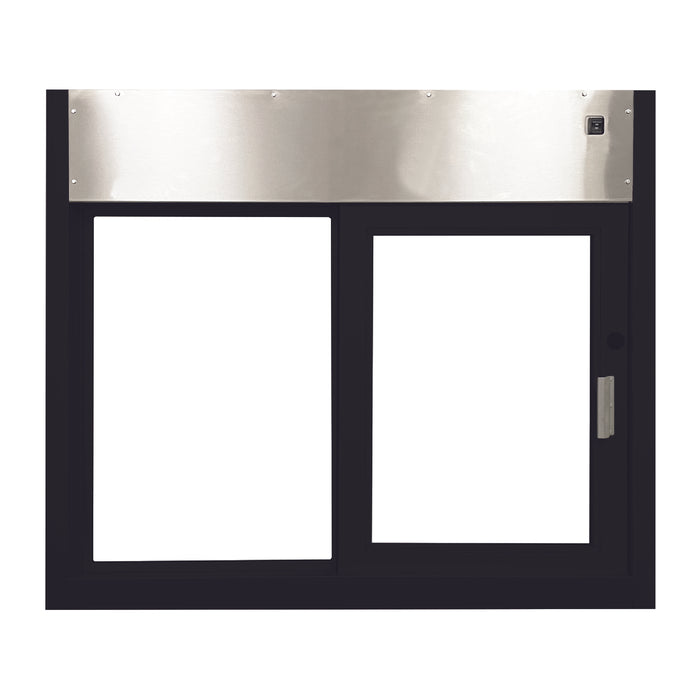

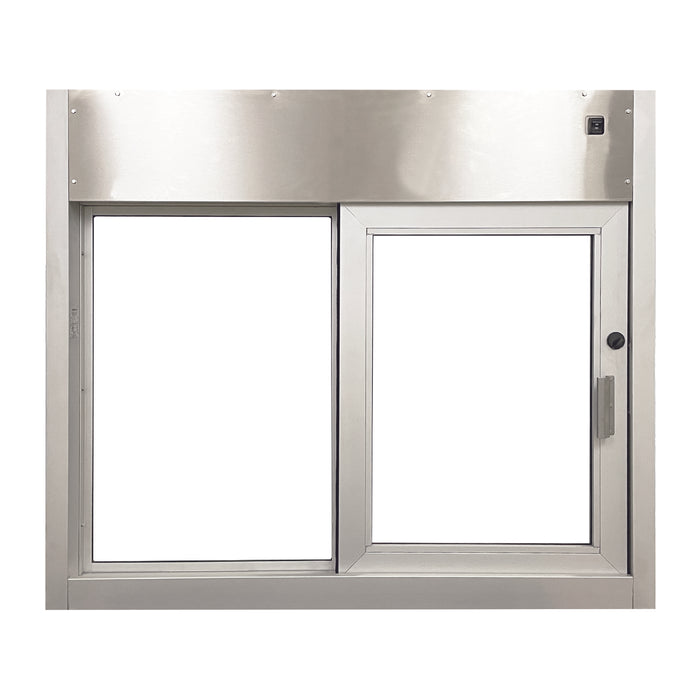

• 48" (W) x 41" (H) | Fully Automatic | 1/4" Tempered Glass | SS-4035E

This automatic single sliding drive-thru window is the perfect solution for hands-free service in the drive-thru food industry. It features a presence sensor photoelectric eye bar that detects presence and automatically opens/closes the window.

This flush-mount, fully automatic, single slider glides smoothly on a top-hung slide rail system. The transaction window unit is either right or left handed, depending on your needs. An offset in the base prevents outside intrusion and repels water from entering into your establishment.

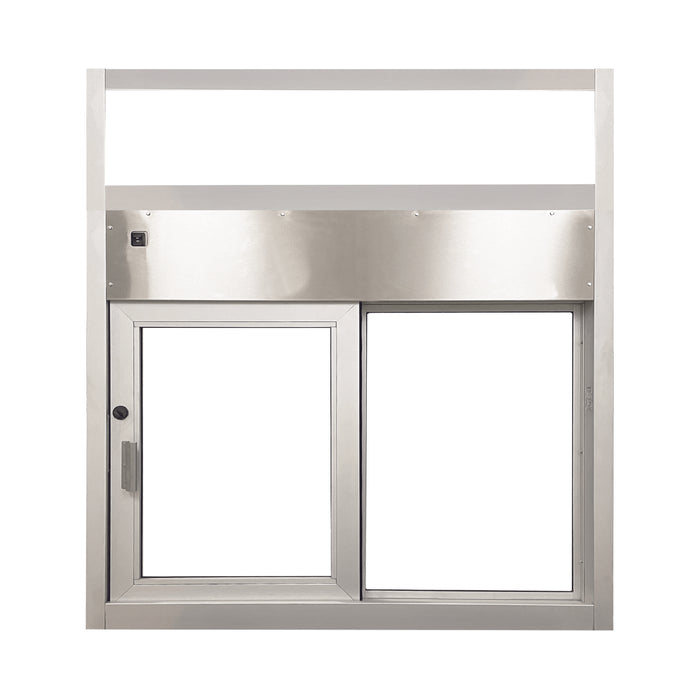

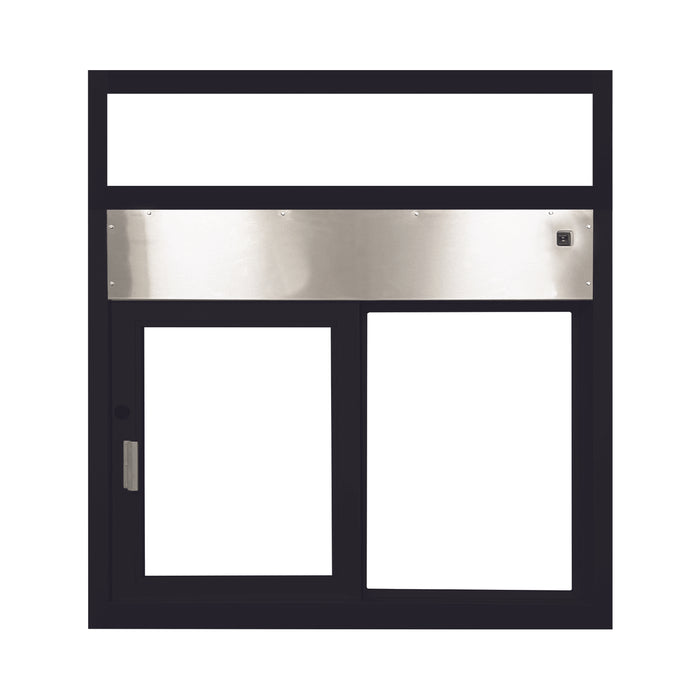

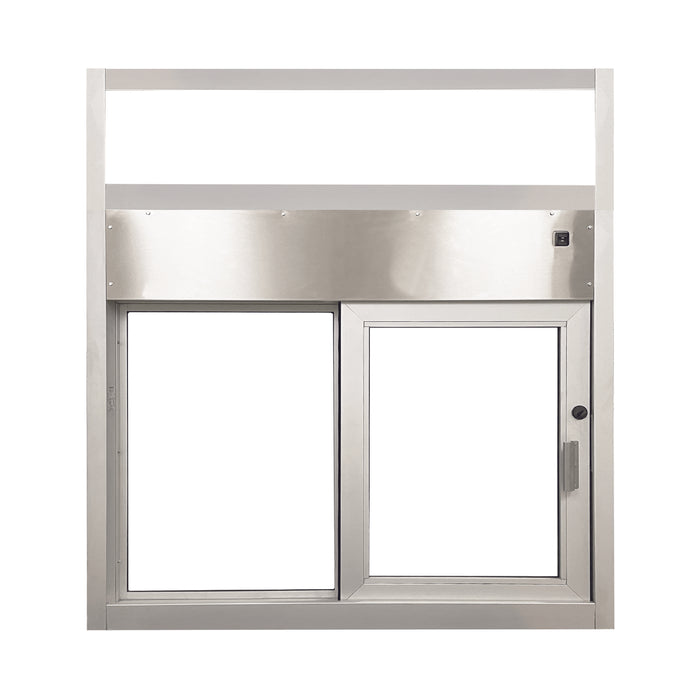

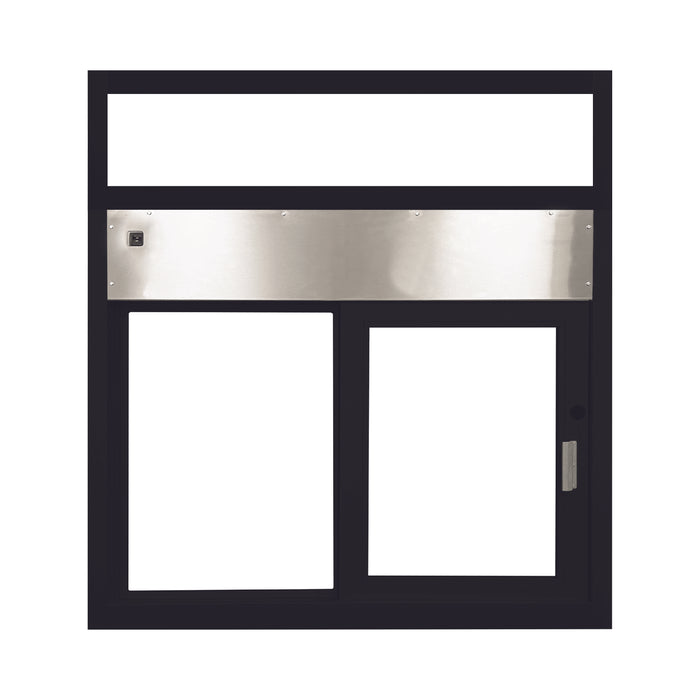

• 47-1/2" (W) x 59-1/2" (H) | Fully Automatic | Overhead Transom | 1/4" Tempered Glass | Quikserv 9673

This self-closing transaction window includes transom and optional air curtain. These windows have a manual opening and self-closing sliders with auto locking handles. You can also take advantage of the magnet hold open device: Slide the window to its full stop and a magnet will hold it open. Once your customer leaves, tap the window and it will close and lock automatically. The air curtain for this window is optional so the window can be built with or without the air curtain built with the unit.

Installation screw holes: 1/4"

Details

SC-3030

Window unit size: 36" (W) x 36" (H)
Service opening: 14-1/2" (W) x 29"(H)
Rough Opening: 36 3/8" (W) x 36 3/8" (H)

SC-4040

Window unit size: 48" (W) x 48" (H)
Service opening: 20-1/4”W x 41”(H)
Rough Opening: 48 3/8" (W) x 48 3/8" (H)

SS-4035E

Quikserv Item #'s: 9613-BL, 9614-BR, 9615-CL, 9616-CR

Window Unit Size: 48" (W) x 41" (H)
Rough Opening: 48-3/8" (W) x 41-3/8" (H)
Service Opening: 20-1/4" x 29"
Frame depth: 4-1/2"

SST-4860E

Window unit size: 47-1/2" (W) x 59-1/2" (H)
Service opening: 20”W x 31-5/8”(H)
Rough Opening: 47-7/8" (W) x 59-7/8" (H)

Glazing Specifications

1/4" Tempered Glass

Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84

1/4 Tempered Glass Specification

1" Insulated
