Krystal | Drive Thru Slider Windows
Usually Ships Within:

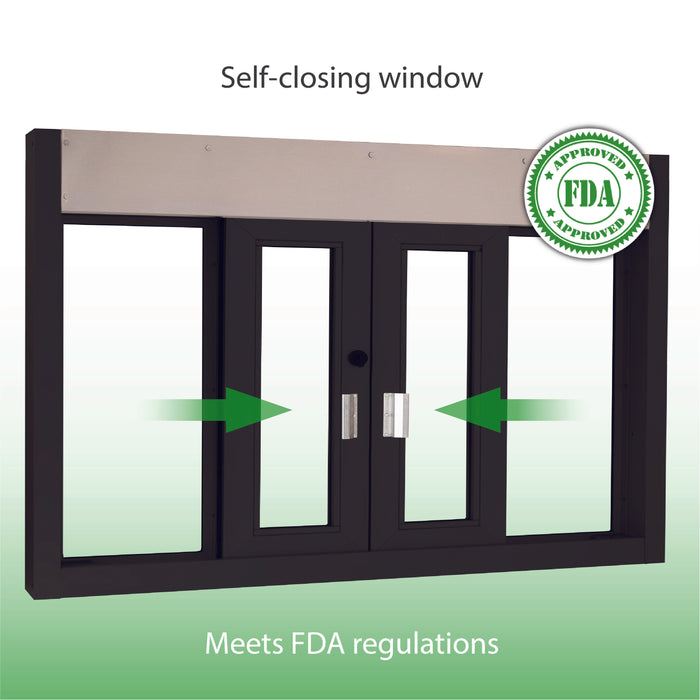

These drive thru self-closing windows are commonly installed in Krystal quick service restaurants.
CONFIGURATIONS COMMON IN KRYSTAL RESTAURANTS

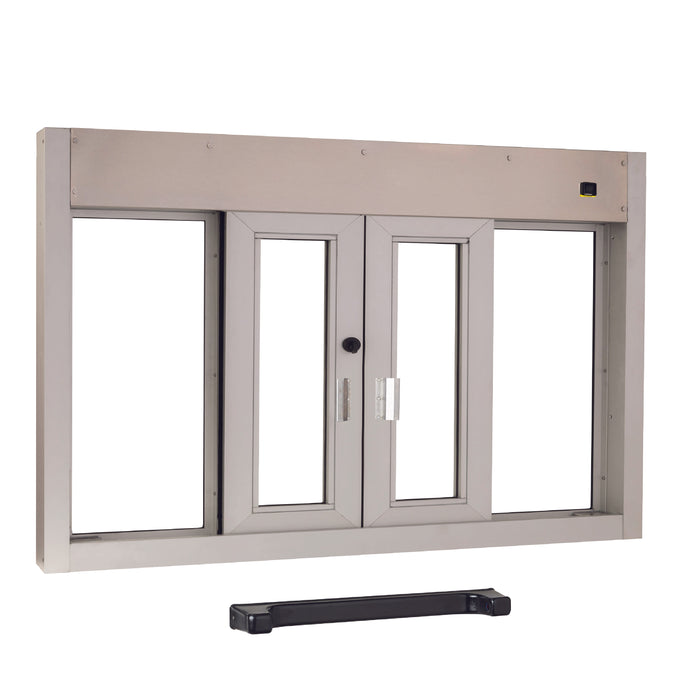

- 72" (W) x 41" (H) | Fully Automatic Bi-Parting | 1/4" Tempered Glass | BP-7241E | Quikserv 9518-CX

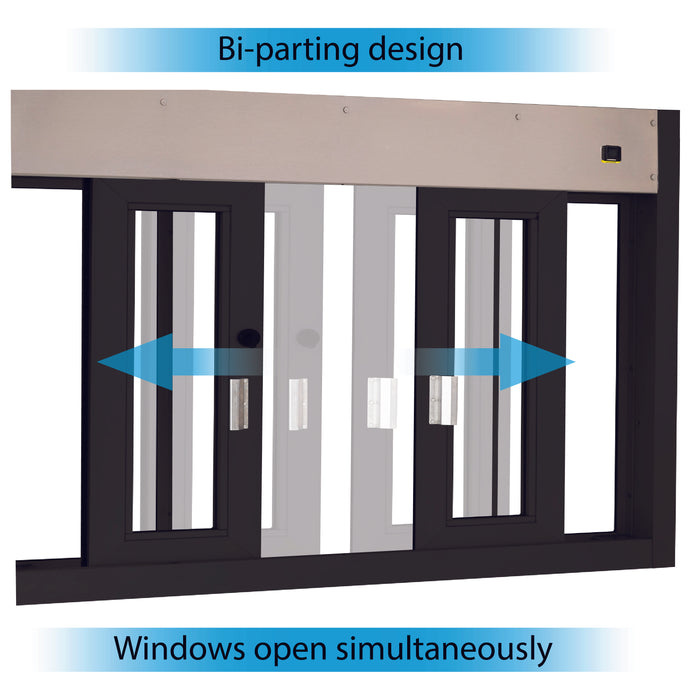

This 72” wide bi-parting automatic sliding transaction window has one of the largest service openings in the drive-thru arena. With a generous 29-1/2”(w) x 32”(h) opening, you can effectively operate with two workers in one window or pass large items such as dry cleaning, large pizza boxes, auto parts, etc. through the transaction window. All automatic windows come standard with the “hands-free” operation via a thru-beam sensor. However, we do offer these with the push button operation as well.
STANDARD FEATURES
- Shipped fully assembled and ready to install
- Warranty backed with Nationwide Service Centers
- 1/4” clear tempered safety glass

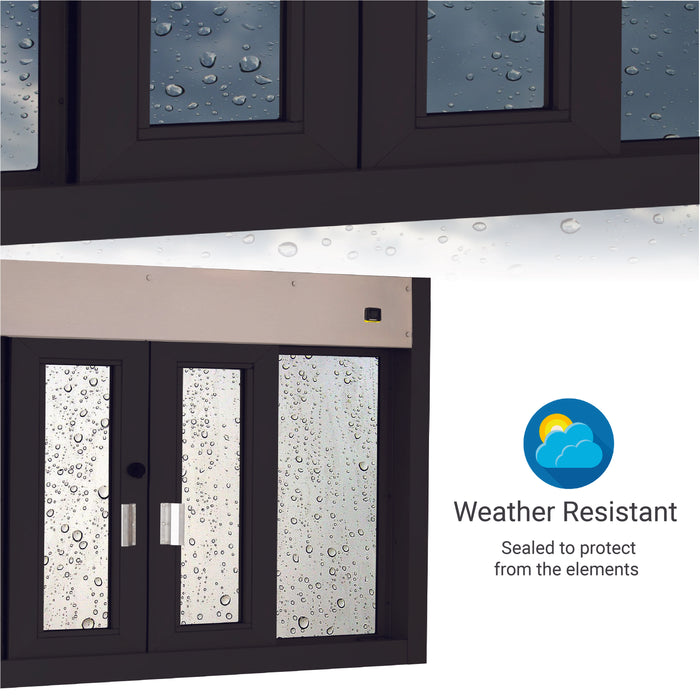

- Weather-resistant and sealed to protect from the elements
- Dark bronze or clear anodized aluminum
- Corrosion-resistant material: Anodized aluminum and #304-#3 finish stainless steel
- Security locking systems
- Easy manual operation upon power failure
- Maximum security hook-bolt locks
- ETL listed

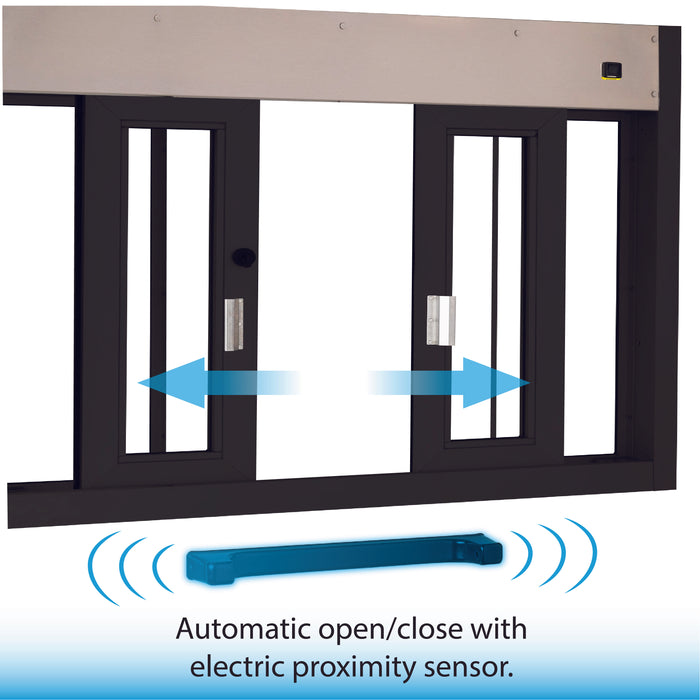

THRU-BEAM PHOTO-ELECTRIC EYE-BAR
Activated when the attendant stands between the emitter and receiver. Available on all electric sliders and is best used where there is limited space or tighter working conditions.
Tech Specs
Installation screw holes: 1/4"
Details
BP-7241E
Unit Size: 72″ (w) x 41″ (h)
Service Opening: 29-1/2" (w) x 32" (h)
Glazing Specifications
1/4" Tempered Glass
Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84
1/4 Tempered Glass Specification
