Handle's | Drive Thru Slider Windows
Usually Ships Within:
These drive thru self-closing windows are commonly installed in Handle's quick service restaurants.
Perfect for concession stands, these transaction windows with self-closing, horizontal sliders meet all health code requirements. These self-closing units are mounted flush to the exterior wall. By simply releasing the window after serving the customer, the door panel closes and locks automatically. With an offset in the base, and gliding on a top-hung ball bearing system, these sliders are the smoothest transaction windows on the market.
CONFIGURATIONS COMMON IN HANDLE'S RESTAURANTS

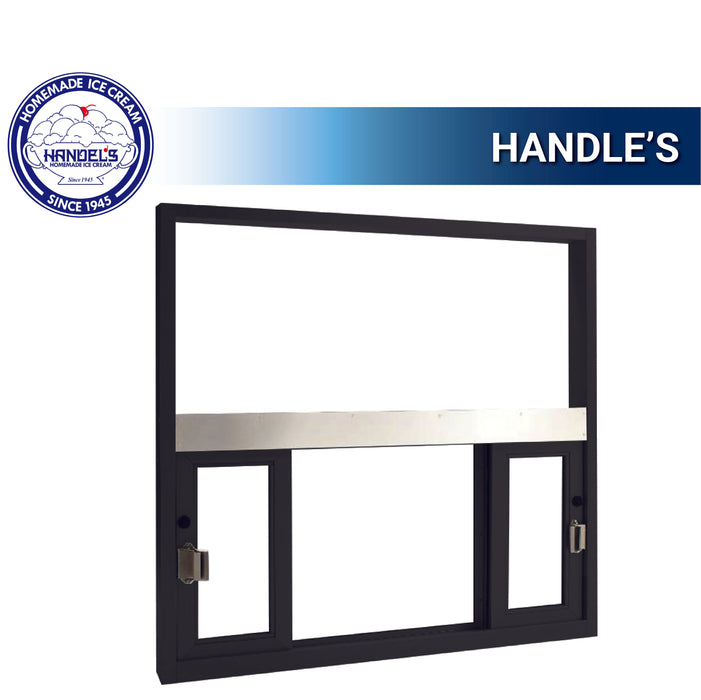

- 76" (W) x 36" (H) Double Slider Transaction Window | 1/4" Tempered Glass | SCDS-7664 | Quikserv 9305
- 36" (W) x 36" (H) | Manual Operation, Self Closing | 1/4" Tempered Glass | Quikserv 9044/9045
STANDARD FEATURES
- Shipped fully assembled and ready to install
- Warranty backed with Nationwide Service Centers
- 1/4” clear tempered safety glass
- Weather-resistant and sealed to protect from the elements
- Dark bronze or clear anodized aluminum
- Corrosion-resistant material: anodized aluminum and #304-#3 finish stainless steel
- Security locking systems
- Maximum security hook-bolt locks
- Automatically locks every time the door closes to prevent outside penetration
Tech Specs
Installation screw holes: 1/4"
Details
SCDS-7236
Window unit size: 76" (W) x 64-1/4" (H)
Service opening: 14-1/2" (W) x 29" (H)
Rough Opening: 76-3/8" (W) x 64-5/8" (H)
SC-3030
Window unit size: 36" (W) x 36" (H)
Service opening: 14-1/2" (W) x 29"(H)
Rough Opening: 36 3/8" (W) x 36 3/8" (H)
Glazing Specifications
1/4" Tempered Glass
Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84
1/4 Tempered Glass Specification
Downloads
SCDS-7236
SC-3030
Three-Sided View
