Habit Burger | Drive Thru Slider Windows

Name: Habit Burger | Drive Thru Slider Windows
Brand: Quikserv
SKU: CSE-QSR-HB-BP-TB-7241E-1/4-C
Price: 3950.0 USD
Availability: InStock

by Quikserv

SKU CSE-QSR-HB-BP-TB-7241E-1/4-C

$3,500.00 - $3,950.00

$3,950.00

$3,500.00 - $3,950.00

$3,950.00

Usually Ships Within:

5 business days + transit time

Drive Thru Self-Closing Slider: 72" (W) x 41" (H) | Fully Automatic | Bi-Parting | 1/4" Tempered Glass

72" (W) x 41" (H) | Fully Automatic | Bi-Parting | 1/4" Tempered Glass

47-1/2" (W) x 59-1/2" (H) | Fully Automatic | Overhead Transom | 1/4" Tempered Glass

Color: Standard Clear

Slide Direciton: Bi-Parting

Bi-Parting

Right Handle

Left Handle

Quantity

CUSTOM QUOTE

Your selections will add an additional charge of

Warranty

Covered by our 12-month Warranty

Give Us A Call

+1 (866) 286-4400

Industrial Quality

Designed for commercial use.

Overview
Tech Specs
Downloads

Overview

These drive thru self-closing windows are commonly installed in Habit Burger quick service restaurants.

CONFIGURATIONS COMMON IN HABIT BURGER RESTAURANTS

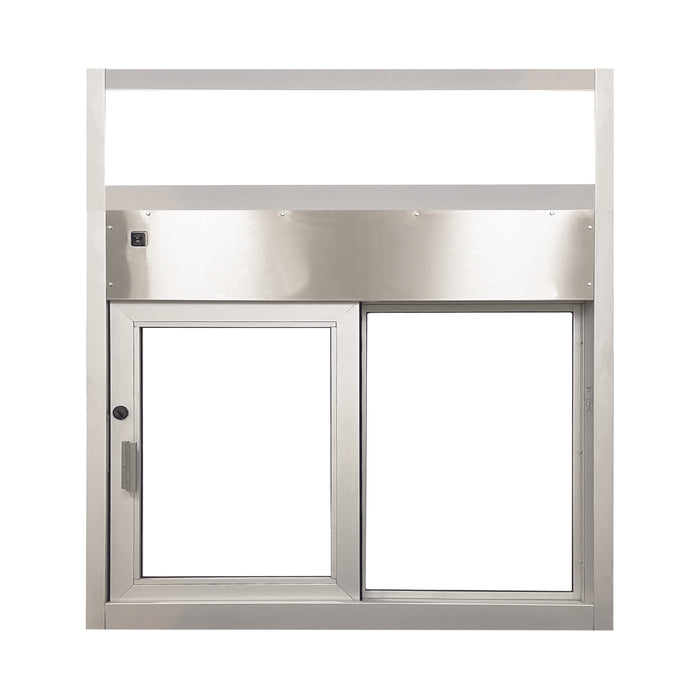

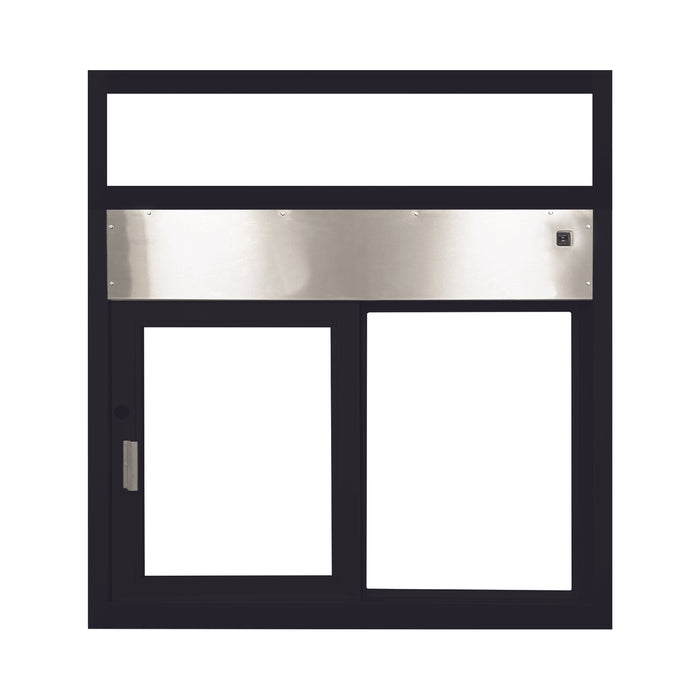

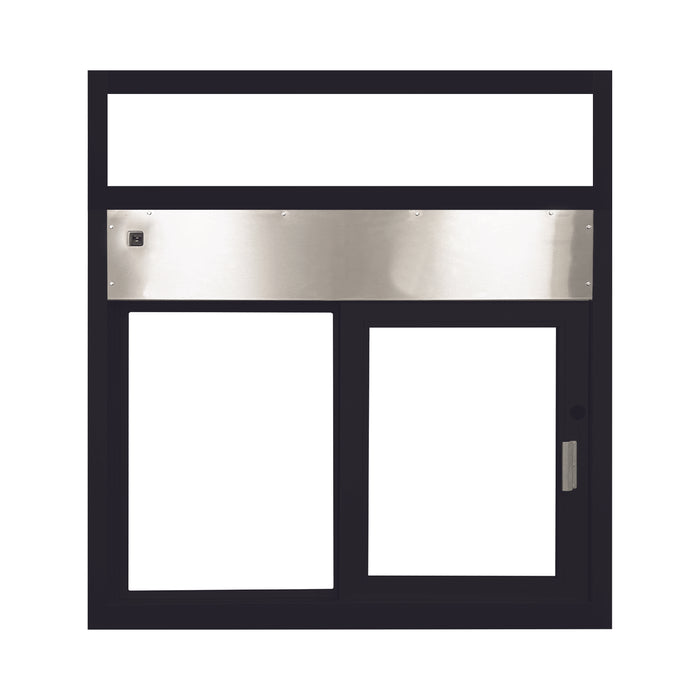

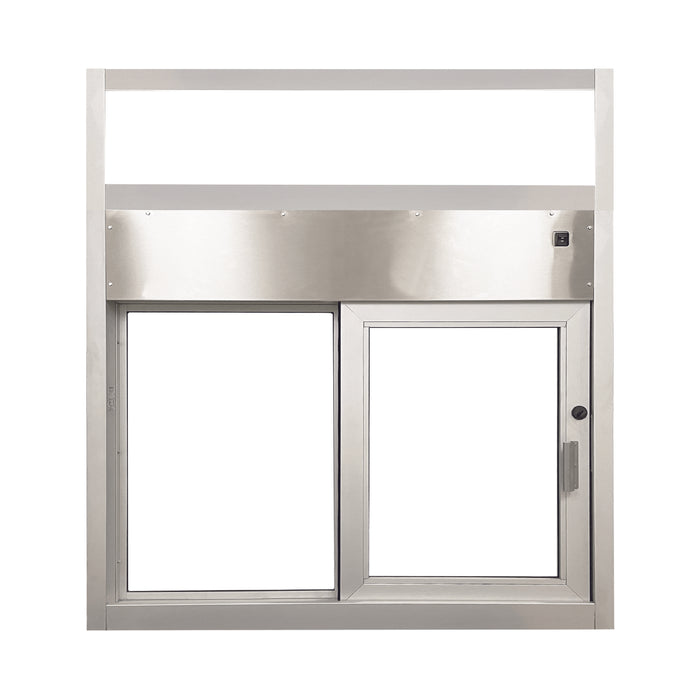

47-1/2" (W) x 59-1/2" (H) | Fully Automatic | Overhead Transom | 1/4" Tempered Glass | Quikserv 9631

This self-closing transaction window includes transom and optional air curtain. These windows have a manual opening and self-closing sliders with auto locking handles. You can also take advantage of the magnet hold open device: Slide the window to its full stop and a magnet will hold it open. Once your customer leaves, tap the window and it will close and lock automatically. The air curtain for this window is optional so the window can be built with or without the air curtain built with the unit.

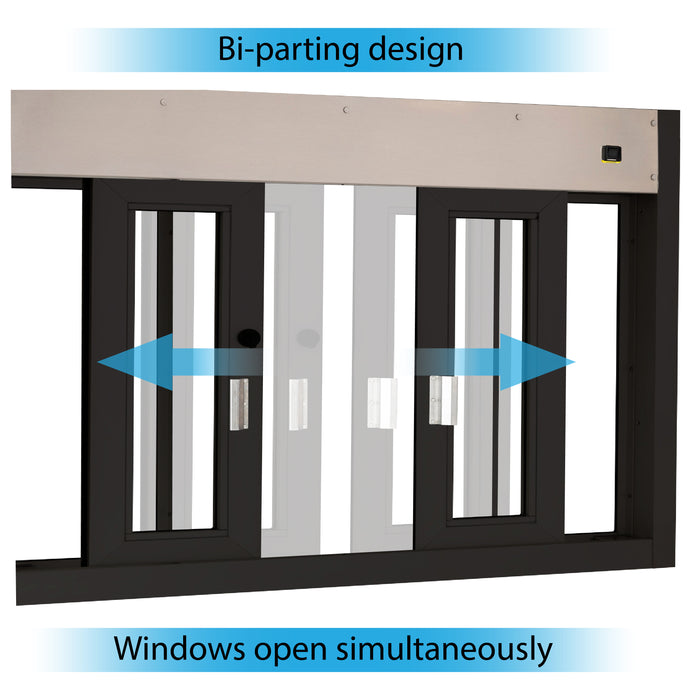

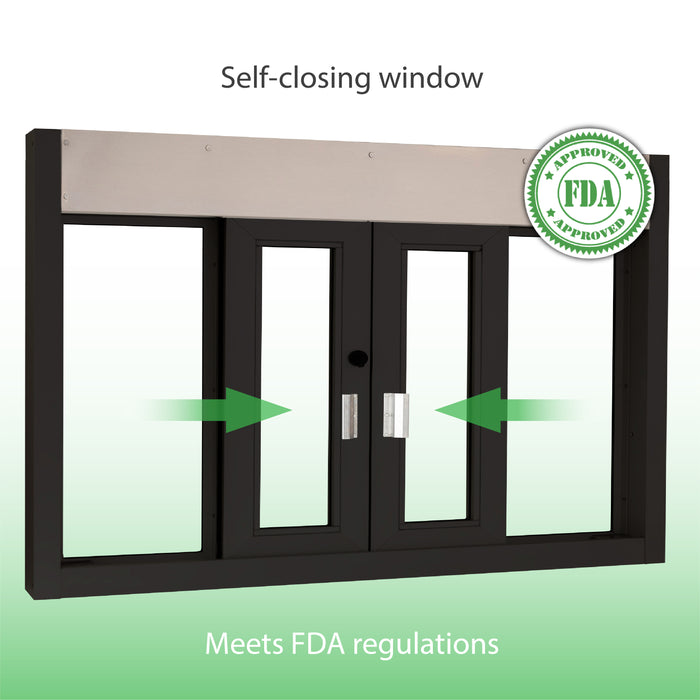

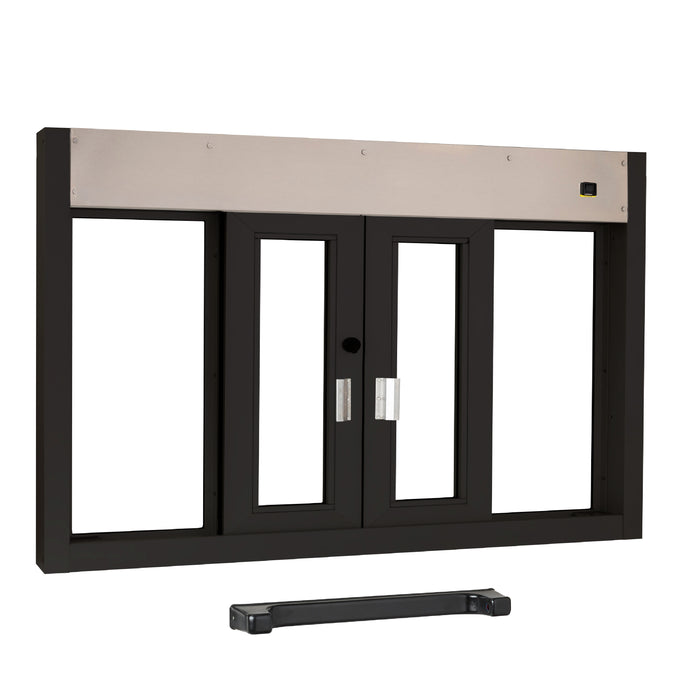

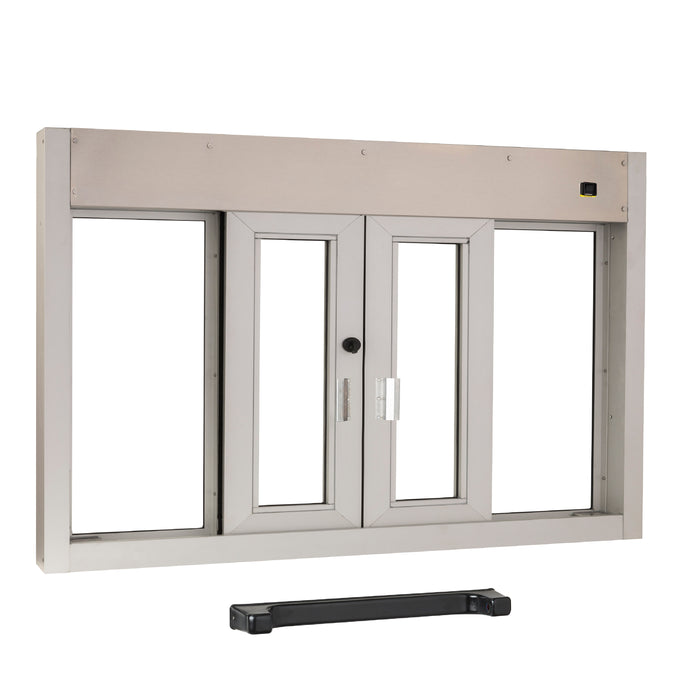

72" (W) x 41" (H) | Fully Automatic | Bi-Parting | 1/4" Tempered Glass | Quikserv 9518

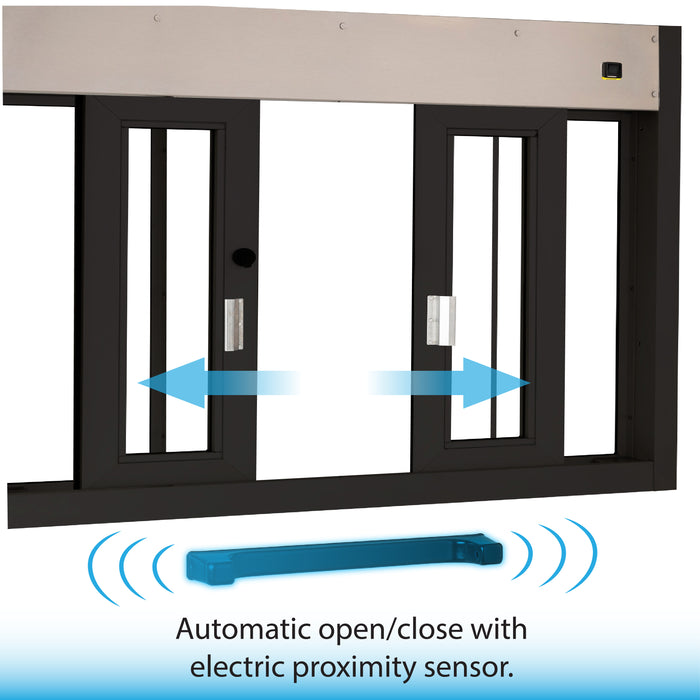

This 72” wide bi-parting automatic sliding transaction window has one of the largest service openings in the drive-thru arena. With a generous 29-1/2”(w) x 32”(h) opening, you can effectively operate with two workers in one window or pass large items such as dry cleaning, large pizza boxes, auto parts, etc. through the transaction window. All automatic windows come standard with the “hands-free” operation via a thru-beam sensor. However, we do offer these with the push button operation as well.

STANDARD FEATURES

Shipped fully-assembled and ready to install
Warranty backed with nationwide service centers
1/4” clear tempered safety glass
Weather resistant & sealed to protect from the elements
Dark bronze or clear anodized aluminum
Corrosion resistant material: anodized aluminum and #304-#3 finish stainless steel
Security locking systems
Maximum security hook-bolt locks
Automatically locks every time the door closes to prevent outside penetration

Tech Specs

Installation screw holes: 1/4"

Details

SST-4860E

Window unit size: 47-1/2" (W) x 59-1/2" (H)
Service opening: 20”W x 31-5/8”(H)
Rough Opening: 47-7/8" (W) x 59-7/8" (H)

BP-7241E
Unit Size: 72″ (w) x 41″ (h)
Service Opening: 29-1/2" (w) x 32" (h)
Rough Opening: 72-3/8" (W) x 41-3/8" (H)

Glazing Specifications

1/4" Tempered Glass

Thickness: .25"
Weight (lbs/sq ft.): 2.87
Transmittance: visible 89 / solar 81
Reflectance: visible out 8 / visible in 8 / solar out 8
U-value: winter night 1.03 / summer day 0.93
SHGC: 0.84

1/4 Tempered Glass Specification
