California drive thru window self closing quikserv food service Covenant Security SC-3030

Quikserv California SS-4035E Drive Thru Window | 48" x 41" Fully Automatic | CA Retail Food Code

Item #CSE-QS-SS-4035E-1/4-C-L-CAL216 Model #SS-4035E
4,07500
$4,075.00 - $6,650.00
$4,075.00 - $6,650.00
4,07500
Bestseller
Get it Fast
Built-to-Order
Submittal

Typically ships in 6 weeks after approved drawings (if applicable)

Submittal required

Shop drawings will be provided for approval prior to fabrication

Order received. We review the order details and begin preparing your submittal package. After we receive your order, we send submittal drawings for review and approval prior to fabrication. This can take up to 1-2 weeks. Once submittals are approved, your order moves into fabrication. After fabrication is complete, your order ships and is delivered.
Order
Received Submittal
Approval Fabrication Delivery

Ships via LTL Freight

Ships via LTL Oversize Freight!

This product ships via LTL freight due to its size or weight. Someone must be available to receive the shipment, inspect for damages, and sign the delivery receipt. Please provide accurate delivery contact information when placing your order.

This product ships via LTL freight due to its size and weight. Please ensure that your delivery location is equipped with either a forklift or a loading dock to safely offload the shipment. If your site is not equipped for LTL delivery, additional delivery arrangements may be required and could result in extra charges.

Quikserv logo

Get exactly what you need!

We'll deliver a custom quote tailored to your specifications.

Request a Custom Quote

The California SS-4035E is Quikserv's 48" x 41" fully automatic, hands-free drive-thru window, built with a glass panel in the sliding sash that limits the service opening to meet the California Retail Food Code. A photo-electric sensor bar opens the window when your attendant steps up and closes it when they step away.

Choose your service opening

  • 216 sq in, no air curtain required. The factory glass panel limits the opening to 20-1/4" (W) x 10-7/8" (H).

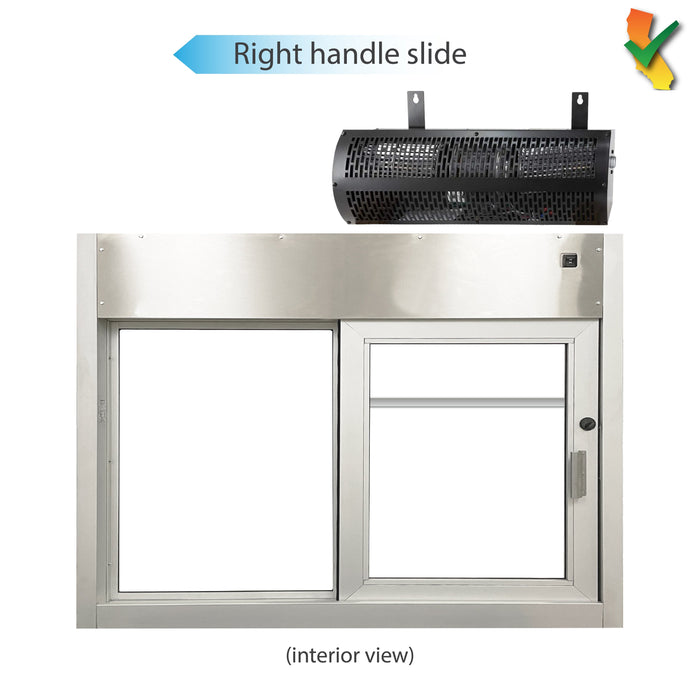

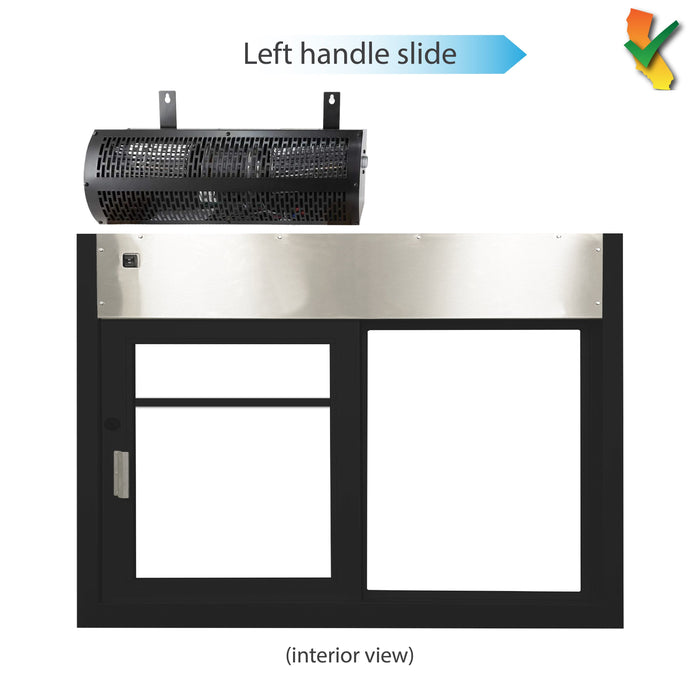

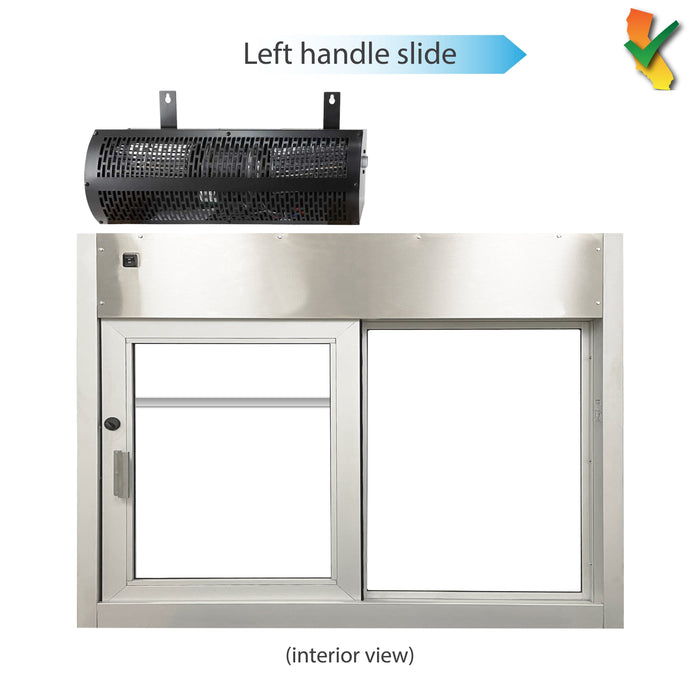

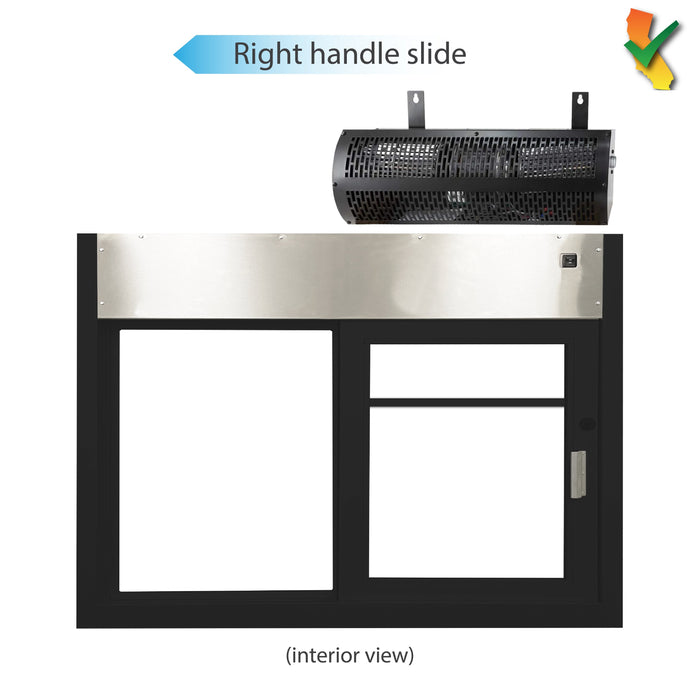

  • 432 sq in with a Quikserv air curtain. A smaller glass panel gives a 20-1/4" (W) x 21" (H) opening, paired with Quikserv's matching 25" non-heated or heated air curtain. The air curtain ships with the window from Quikserv.

California Retail Food Code at a glance

  • Pass-through windows must be self-closing.
  • Service opening up to 216 sq in without an air curtain, or up to 432 sq in with one.
  • Multiple service windows must be at least 18" apart.

Requirements can vary by county. Confirm your plan with your local health department before ordering.

Specifications

  • Unit size: 48" (W) x 41" (H)
  • Rough opening: 48-3/8" (W) x 41-3/8" (H)
  • Frame depth: 4-1/2"
  • Glazing: 1/4" clear tempered safety glass
  • Frame: clear or dark bronze anodized aluminum with #304-#3 finish stainless steel
  • Top-hung single slider; left- or right-hand (viewed from the interior)
  • Power: 115V / 15 amp dedicated circuit; ships with a 4' BX electrical drop
  • Easy manual operation during a power failure; thumb-turn lock for after hours
  • ETL listed
  • Shipped fully assembled from Quikserv by LTL freight

The window and air curtain need electrical connections by a qualified electrician.

  • Built to meet the California Retail Food Code
  • Fully automatic: sensor bar opens and closes the window hands-free
  • Factory glass panel limits the opening to 216 or 432 sq in
  • 216 sq in units need no air curtain
  • 432 sq in units ship with a matching Quikserv non-heated or heated air curtain
  • 115V / 15A dedicated circuit; ships with a 4 ft. BX drop
  • Manual operation during a power failure
  • ETL listed, shipped fully assembled and ready to install
  • 12-month warranty backed by nationwide service centers

General

SKU
CSE-QS-SS-4035E-1/4-C-L-CAL216
Model
SS-4035E

Dimensions (CSE-QS-SS-4035E-1/4-C-L-CAL216)

Actual Size
48 in W × 41 in H
Rough Opening
48.38 in W × 41.38 in H
Service Opening
20.25 in W × 10.88 in H
Frame Depth
4.5 in
Weight
156 lb
